Fuel Level Sensor

Engine Code BPR (Metal Fuel Tank)

Fuel Level Sensor

Removing

- Remove the fuel delivery unit. Refer to => [ Fuel Delivery Unit ] Fuel Delivery Unit.

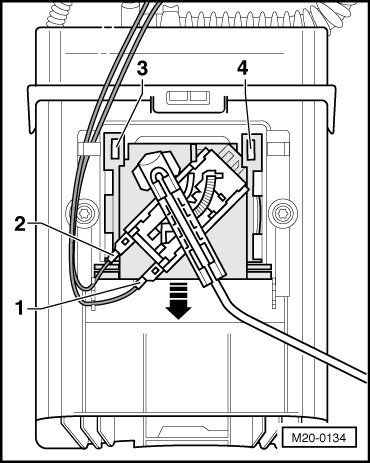

- Disengage the connector prongs for wires - 1 and 2 - and disconnect.





- Pry up the retaining tabs - 3 and 4 - using screwdriver and pull the fuel level sensor downward in the - direction of the arrow -.

Installing

- Install the fuel level sensor into the guides on the fuel delivery unit and press up until engagement.

- Insert the connector prongs for the wires - 1 - (blue) and - 2 - (black).

- Install the fuel delivery unit. Refer to => [ Fuel Delivery Unit ] Fuel Delivery Unit.
