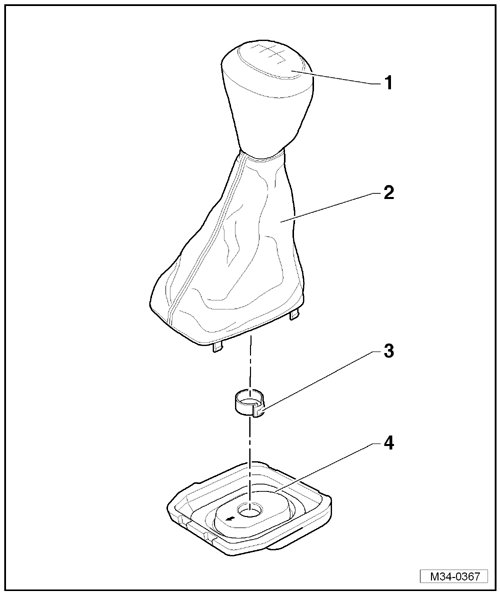

Shift Knob and Cover Assembly Overview

Shift Knob and Cover Assembly Overview





1 Shift knob

• With boot

• Shift knob and boot cannot be separated from each other.

• Always replace together

• Removing and installing --> [ Shift Lever Boot ] Shift Lever Boot.

2 Boot

3 Clamp

• For securing shift knob to shift lever

• Always replace

4 Sound insulation

• Arrow on sound insulation points in direction of travel

• Catches are arranged in varying intervals

• Therefore can only be inserted in one position
