Transmission Housing and Selector Mechanism Assembly Overview

Transmission Housing and Selector Mechanism Assembly Overview

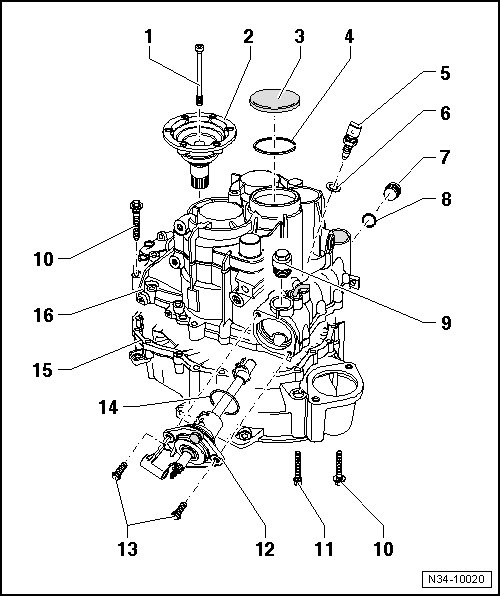

1 Countersunk bolt, 33 Nm

2 Flanged shaft with spring

• Removing and installing --> [ Transmission Housing, Shift Mechanism, Input Shaft, Output Shafts, Differential and Selector Rods ] Transmission Housing, Shift Mechanism, Input Shaft, Output Shafts, Differential and Selector Rods.

• Assembling --> [ Differential ] Service and Repair.

3 Sealing cap

4 Circlip

5 Back-up light switch, 20 Nm

6 Seal

• Always replace

7 Oil drain plug

• Note different versions

• With multi point socket head, 45 Nm

• With hex-socket head, 30 Nm

8 Seal

• Always replace

9 Locking bolt, 30 Nm

• For selector shaft

10 Bolt, 15 Nm + an additional 90° (1/4 turn)

• Bolt with permanent washer as replacement part only

• Always replace, allocate.

• Allocation of bolts as replacement parts --> [ Allocation of Bolts as Replacement Parts ]

11 Bolt, 15 Nm+ an additional 90° (1/4 turn)

• Without washer

• Always replace, allocate.

• Allocation of bolts as replacement parts --> [ Allocation of Bolts as Replacement Parts ]

12 Selector mechanism

• Servicing --> [ Selector Mechanism Assembly Overview, Transmission Side ] Selector Mechanism Assembly Overview, Transmission Side.

• Removing with installed transmission:

• Remove battery and battery carrier

• Remove cables, relay lever and transmission shift lever

• Remove locking bolt, remove selector mechanism

13 Hex bolt, 20 Nm

• Always replace

14 O-ring

• Always replace

15 Clutch housing

• Servicing --> [ Clutch Housing, Servicing ] Clutch Housing, Servicing.

16 Transmission housing

• Servicing --> [ Transmission Housing, Servicing ] Transmission Housing, Servicing.

Allocation of Bolts as Replacement Parts





A Bolt with permanent washer
B Bolt without washer
C Bolt with permanent washer
