Differential: Specifications

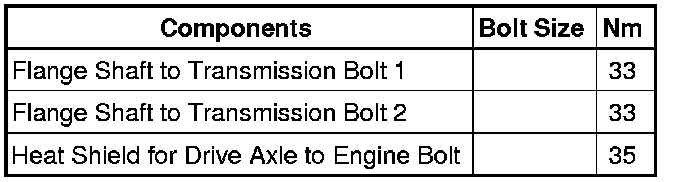

Fastener Tightening Specifications





• 1 Conical head bolt

• 2 Countersunk bolt
