Reading and Clearing Diagnostic Trouble Codes

Reading Codes

Description

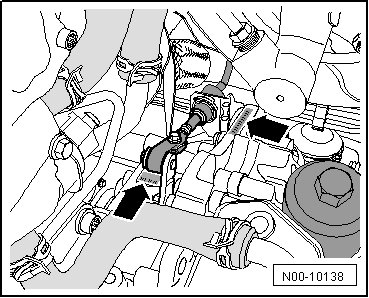

On some transmissions, additional transmission code letters are located on top of the transmission in the area of the selector lever cable - two arrows -.





To read the transmission code letters under the console directly from the transmission, the engine and transmission must be supported. The left assembly mounting plate - A - must be removed. When doing this, it is important to lower the engine/transmission only far enough until the plate can be slid rearward. If lowered further, the pendulum support could be damaged. After reassembly, selector lever cable must be adjusted --> [ Selector Lever Cable, Adjusting ] Adjustments.





- Support engine with transmission with engine support bridge (10 - 222 A), adapter (10 - 222 A /3), hooks (10 - 222 A /10) and adapter (10 - 222 A /13). Do not lift up.
