Removal and Replacement

Selector Lever Cable

• After installation, cable must be checked for ease of movement and must be adjusted.

Removing

- Place selector lever in position "S".

Loosen adjustment screw - arrow -.





- Remove lock washers - A - and - B -. Lock washers must later be replaced when adjusting cable.

- Raise vehicle.

- In order to remove cable and/or selector mechanism, heat shield and if necessary exhaust system components must now be removed.

- Remove heat shield.

- Remove shift mechanism housing beneath selector lever.

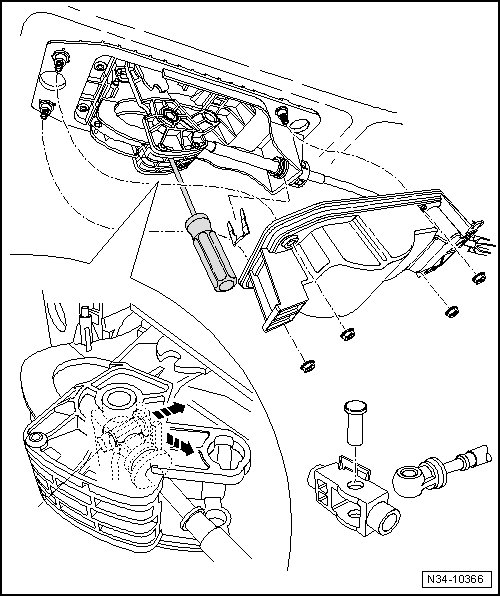

In order to remove cable, - pin - must be pressed upward using a - screwdriver -.





- Simultaneously, press securing tab, which secures - pin -, toward front - arrows -.

- Remove mounting bracket lock washer. Always replace locking washer.

- Remove selector lever cable.

Installing

• Do not grease cable.

- Loosen adjusting screw for cable.

- Route selector lever cable free of tension, also insert into bracket at transmission but do not secure with lock washers yet.

This occurs when you have checked cable's ease of movement.

- Secure cable with pin to selector lever and secure to bracket of shift mechanism using new locking washer.

- Install shift mechanism housing, heat shield and exhaust system.

- Check cable --> [ Selector Lever Cable, Checking ] Procedures
