Transmission, Transporting and Securing to Assembly Bracket

Transmission, Transporting and Securing to Assembly Bracket

Transporting transmission

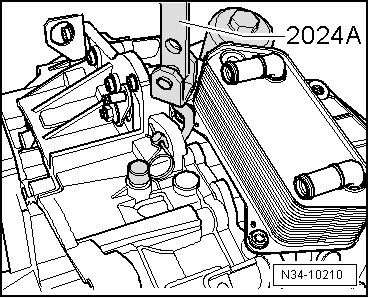

- Use appropriate lifting tools, for example part of lifting tackle (2024 A) and shackle (10 - 222 A /12) (not in illustration).

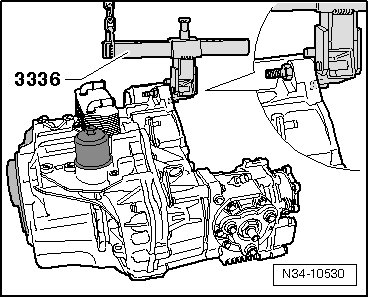

The transmission can also be lifted with transmission support jig (3336).

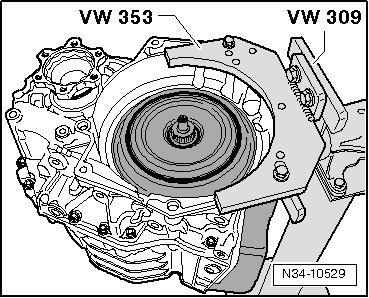

Example: Secure front wheel drive transmission to assembly bracket.
