Clutch, Removing

Clutch, Removing

To remove and install clutch, the transmission must be secured in a vertical position on assembly stand.

- Remove clutch cover --> [ Clutch End Cover, Removing ] Clutch End Cover, Removing

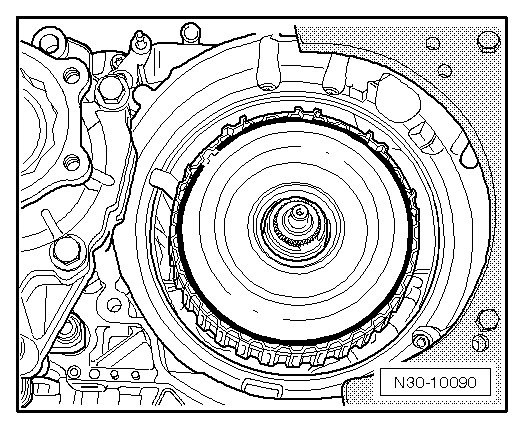

- Remove clutch cover securing ring.





- Remove clutch cover.

- Remove securing ring - arrow -.





Circlip must be re-measured later for installation and replaced.

CAUTION!
Carefully remove clutch. Make sure that the end cover or other parts of the clutch do not fall out; for this reason, do not turn over the clutch!

If this happens --> [ Special care ] Clutch, Installing and Adjusting

- Remove clutch.





- Remove pump shaft - A -.





- The pump shaft is inserted only after installation of the new clutch. Set shaft aside until then.
