Ground Connections In Engine Compartment, Overview

Ground Connections, from January 2008,

Ground connections in engine compartment, overview







-

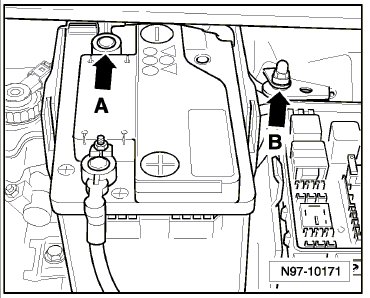

(1) - Ground strap, battery to body => -Arrow A-
(12) - Ground Connection, in engine compartment, left => -Arrow B-





(656) - Ground Connection (on right headlight) => -Arrow-





(607) - Ground Connection (in left plenum chamber) => -Arrow-





(609) - Ground Connection (in right plenum chamber)
=> -Arrow-





(640) - Ground Connection (in engine compartment, left) => -Arrow A-
(642) - Ground Connection (electronic fan control) => -Arrow C-





(652) - Ground Connection (transmission/engine ground) => -Arrow D-
(655) - Ground Connection (on left headlight) => -Arrow B-





(15) - Ground Connection (on cylinder head) => -Arrow -
