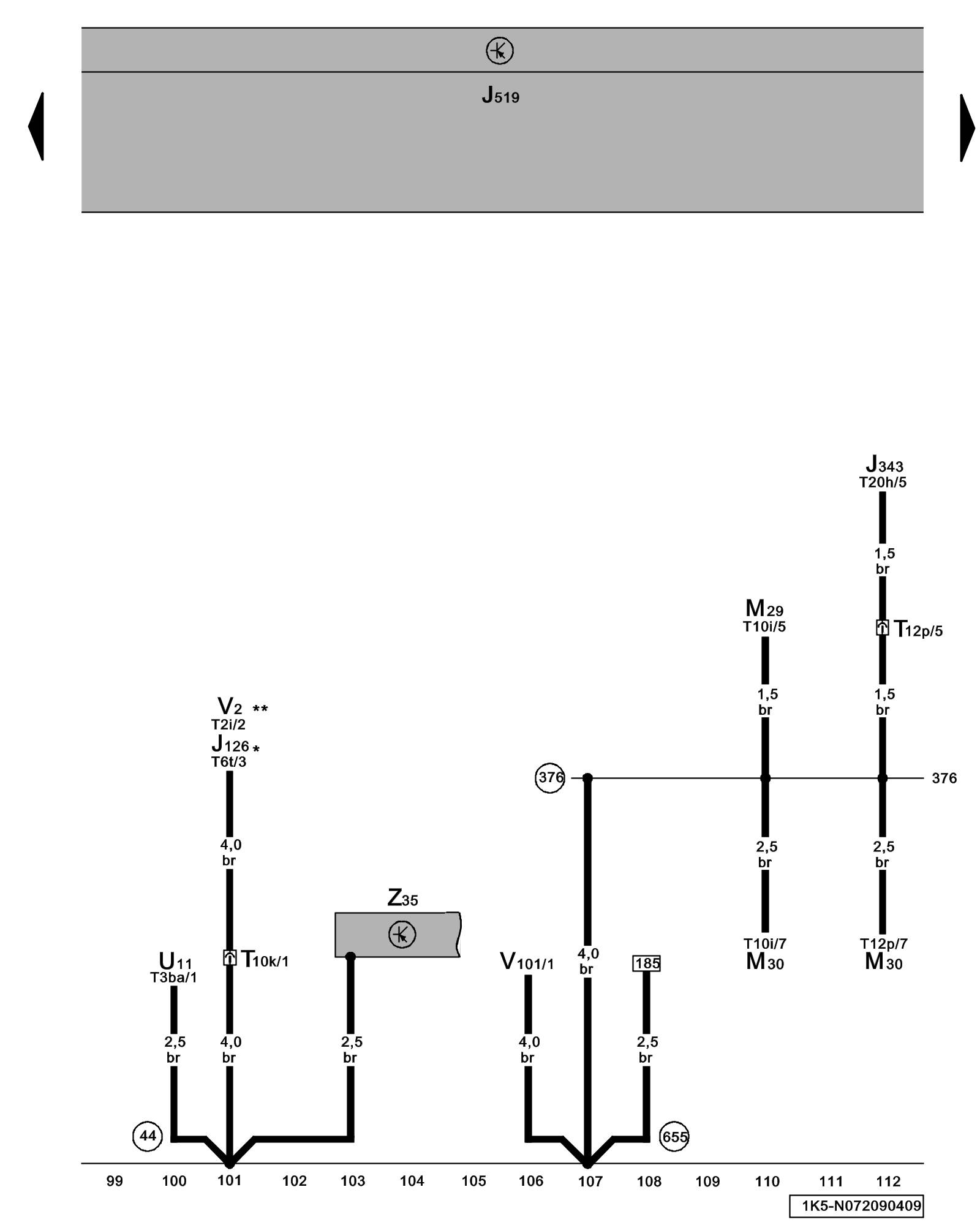

Diagram 73/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J126 - Fresh Air Blower Control Module Passenger Compartment Climatronic (Automatic Climate Control) System

J343 - Left High-intensity Gas Discharge Lamp Control Module

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

M29 - Left Low Beam Headlamp

M30 - Left High Beam Headlamp

T2i - Double Connector

T3ba - 3-Pin Connector

T6t - 6-Pin Connector

T10i - 10-Pin Connector

T10k - 10-Pin Connector

T12p - 12-Pin Connector

T20h - 20-Pin Connector

U11 - Interior Socket, 230V, 110V

V2 - Fresh Air Blower Passenger Compartment A/C And Heating System

V101 - Secondary Air Injection (AIR) Pump Motor Locations

Z35 - Auxiliary Air Heater Heating Element Passenger Compartment A/C And Heating System

(44) - Ground Connection (on left lower A-pillar)

(376) - Ground Connection 11 (in main wiring harness)


- Location: In main wiring harness between power supply (SA) and power supply (SB)

(655) - Ground Connection (on left headlamp)

* - Vehicles with Climatronic

** - Vehicles with Climatic
