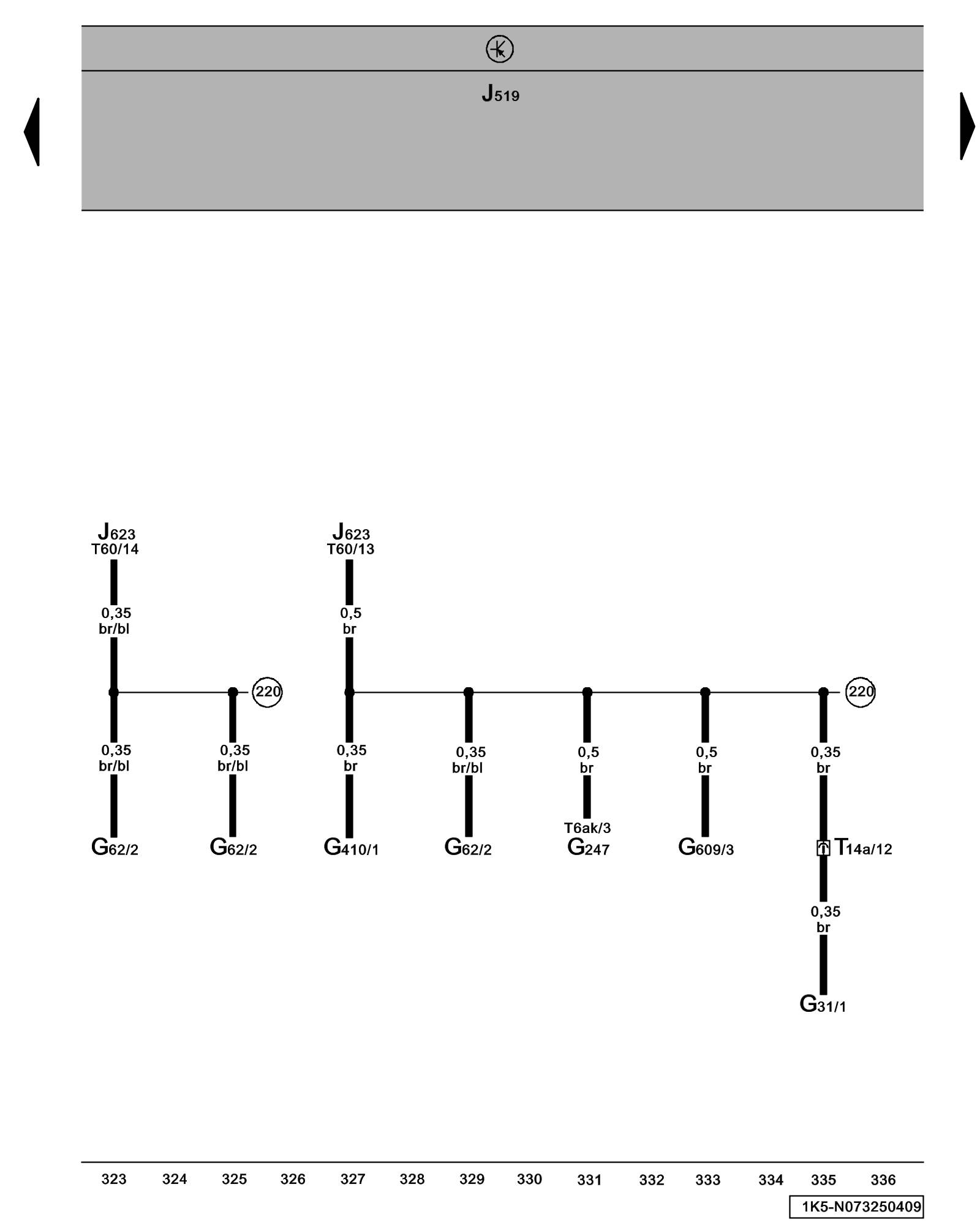

Diagram 73/25 (Tracks 323-336)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge Air Pressure Sensor [1][2]Air Temperature Sensor ( Ambient / Intake ) Locations

G62 - Engine Coolant Temperature (ECT) Sensor Engine Coolant Temperature Sensor -G62- Locations

G247 - Fuel Pressure Sensor [1][2]Diagrams Locations

G410 - Low Fuel Pressure Sensor

G609 - Secondary Air Injection Sensor 1 Locations

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

T6ak - 6-Pin Connector

T14a - 14-Pin Connector

T60 - 60-Pin Connector

(220) - Sensor Ground Connection (in engine compartment wiring harness)


- Location: In wiring circuit between main harness and J623 - Engine Control Module (ECM)
