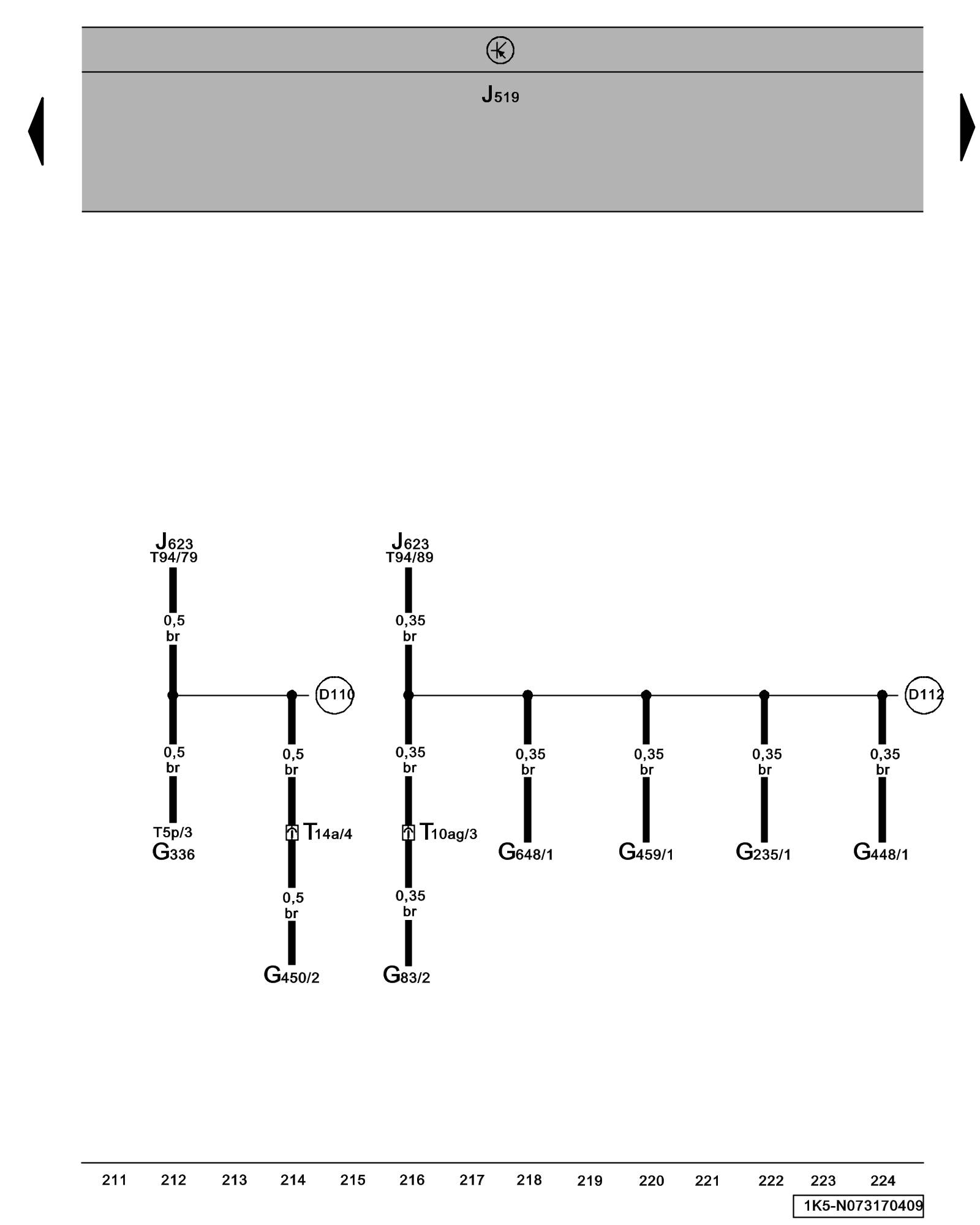

Diagram 73/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G83 - Engine Coolant Temperature (ECT) Sensor (on Radiator) Engine Coolant Temperature Sensor On Radiator -G83- Locations

G235 - Exhaust Gas Temperature (EGT) Sensor 1 Exhaust Gas Temperature Sensor 1 -G235- Locations

G336 - Intake Manifold Runner Position Sensor [1][2]Diagrams

G448 - Bank 1 Exhaust Gas Temperature (EGT) Sensor 2 Exhaust Gas Temperature Sensor 2 -G448- Locations

G450 - Exhaust Pressure Sensor 1 [1][2]Diagrams Locations

G459 - Toll Registration Sensor

G648 - Exhaust Gas Temperature (EGT) Sensor 4 Exhaust Gas Temperature Sensor 4 -G648- Locations

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

T5p - 5-Pin Connector

T10ag - 10-Pin Connector

T14a - 14-Pin Connector

T94 - 94-Pin Connector

(D110) - Connection 8 (in engine compartment wiring harness)


- Location: In main wiring harness between wiring circuits for G39 - Heated Oxygen Sensor (HO2S) and J623 - Engine Control Module (ECM)

(D112) - Connection 10 (in engine compartment wiring harness)


- Location: In wiring circuit between main harness and J623 - Engine Control Module (ECM)

Previous Diagram 73/16 (Tracks 197-210)

Next Diagram 73/18 (Tracks 225-238)
