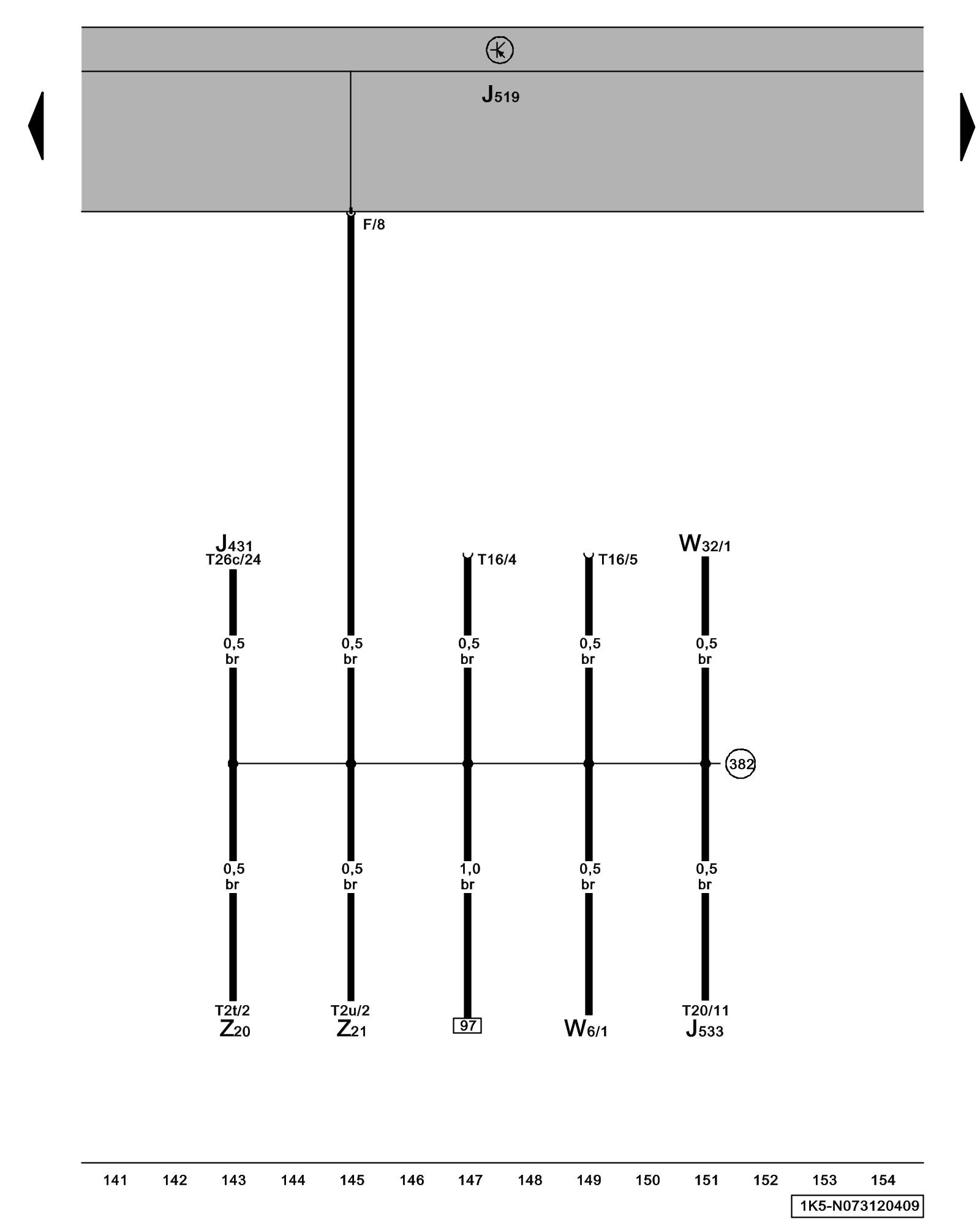

Diagram 73/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J431 - Headlamp Range Control Module

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J533 - Data Bus On Board Diagnostic Interface Control Modules In Interior, From July 2007

T2t - Double Connector

T2u - Double Connector

T16 - 16-Pin Connector, Data Link Connector (DLC), bellow steering column, left

T20 - 20-Pin Connector

T26c - 26-Pin Connector

Z20 - Left Washer Nozzle Heater

Z21 - Right Washer Nozzle Heater

W6 - Glove Compartment Light

W32 - Right Front Entry Light

(382) - Ground Connection 17 (in main wiring harness)


- Location: In main wiring harness between wiring circuits for W6 - Glove Compartment Light and T10k connection for A/C
