Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left, From July 2009







Front passenger's fuse arrangements, from July 2007

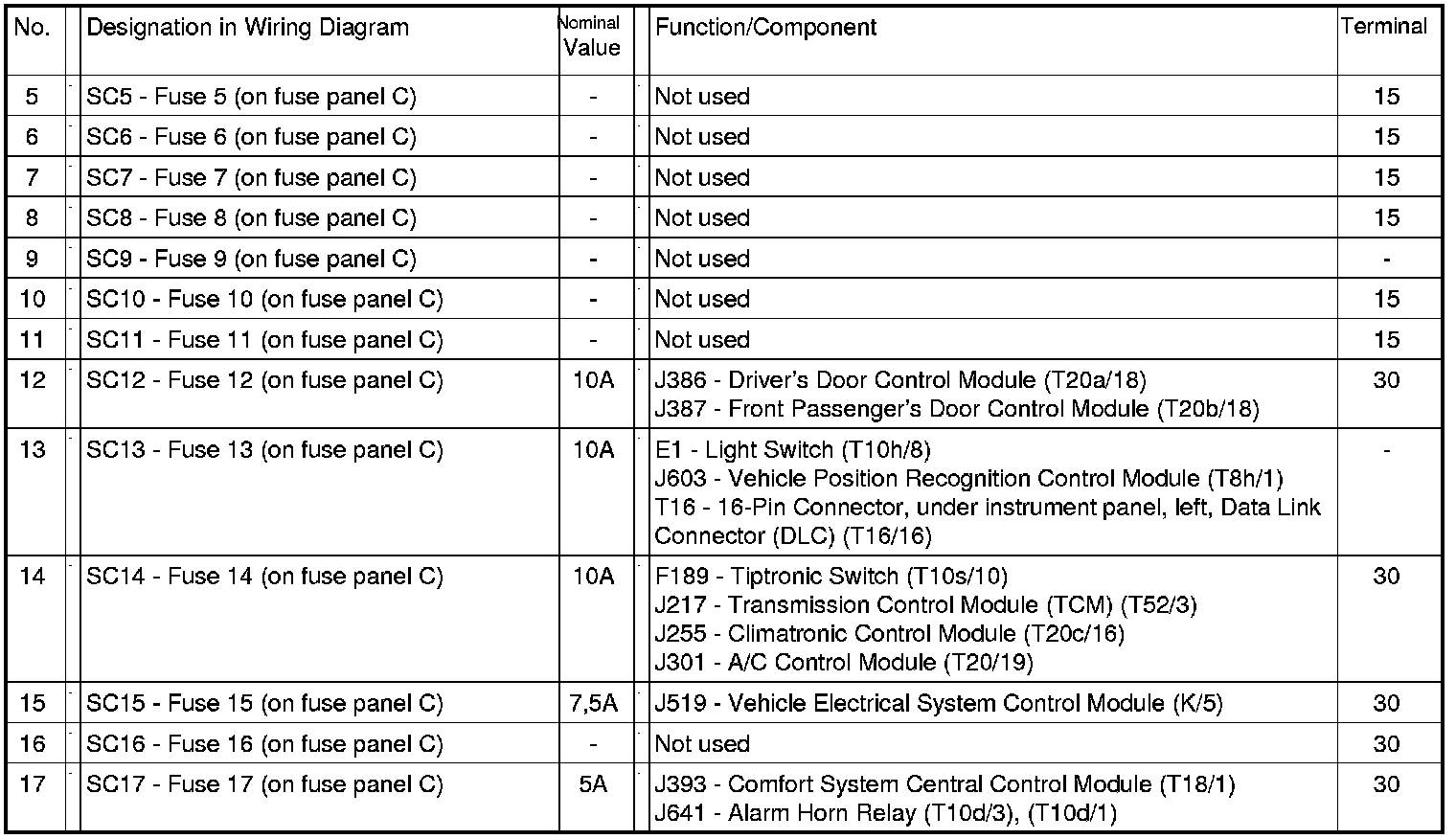

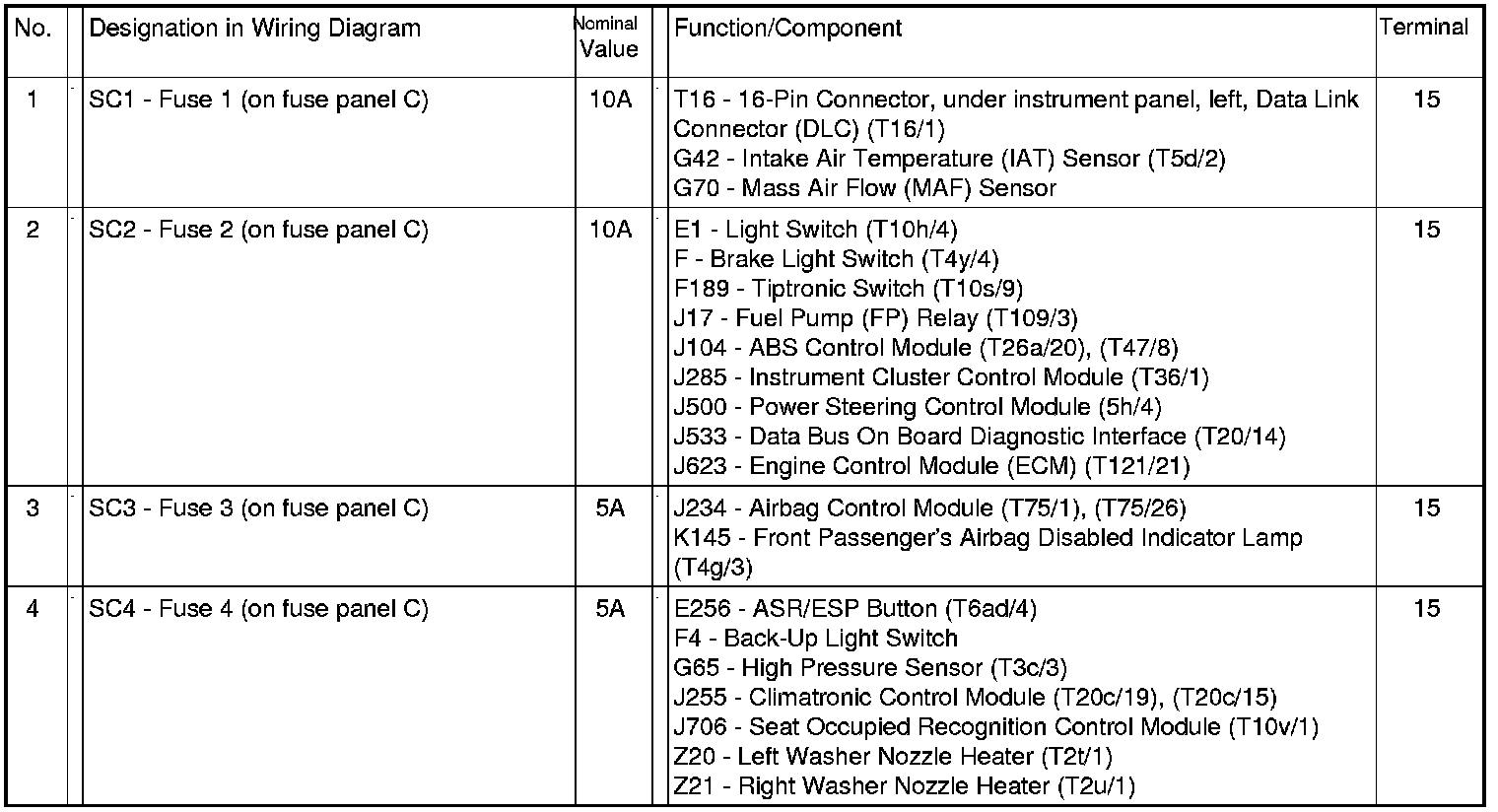

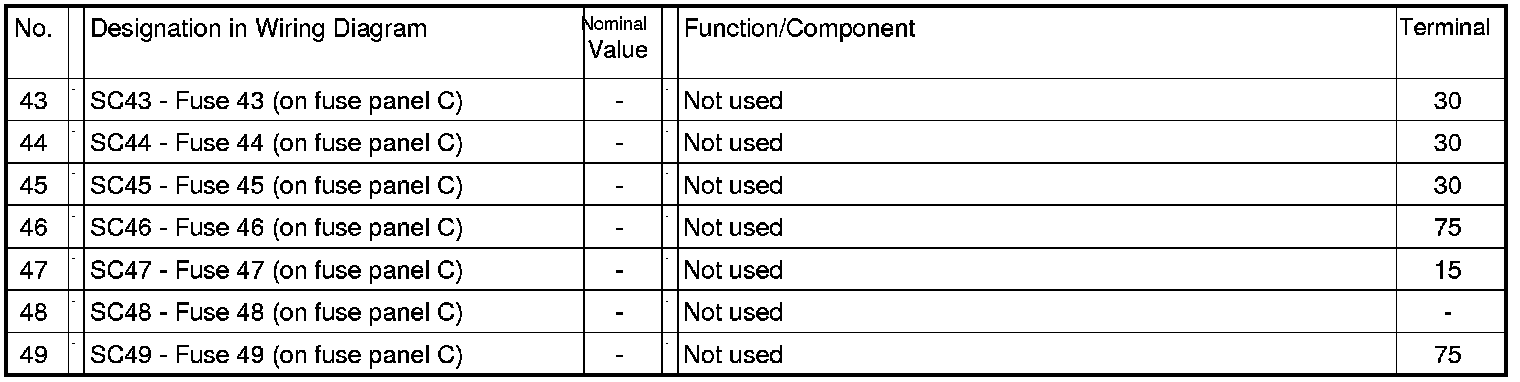

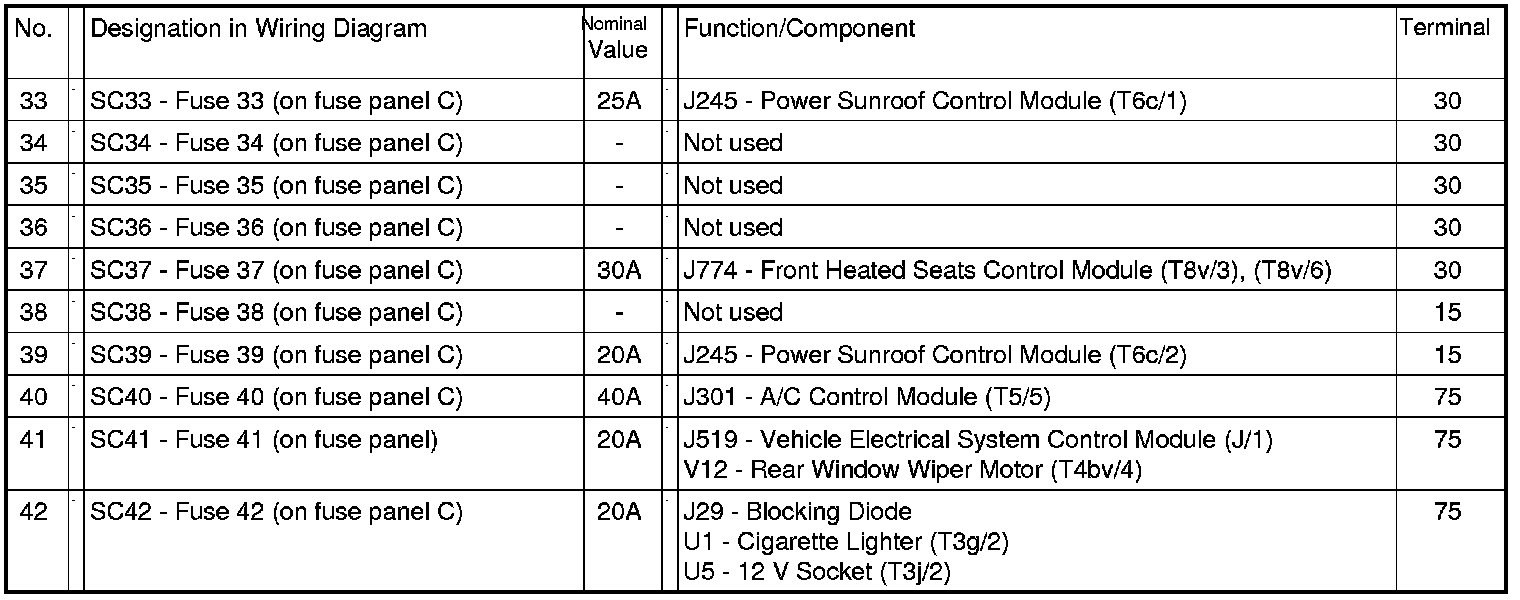

Overview of fuse arrangements (SC) in fuse panel instrument panel, left, from July 2009
