Fuses Arrangements "SB" On Electronics Box (E-box), In Engine Compartment, Left
Relay and fuse arrangements, from January 2008,

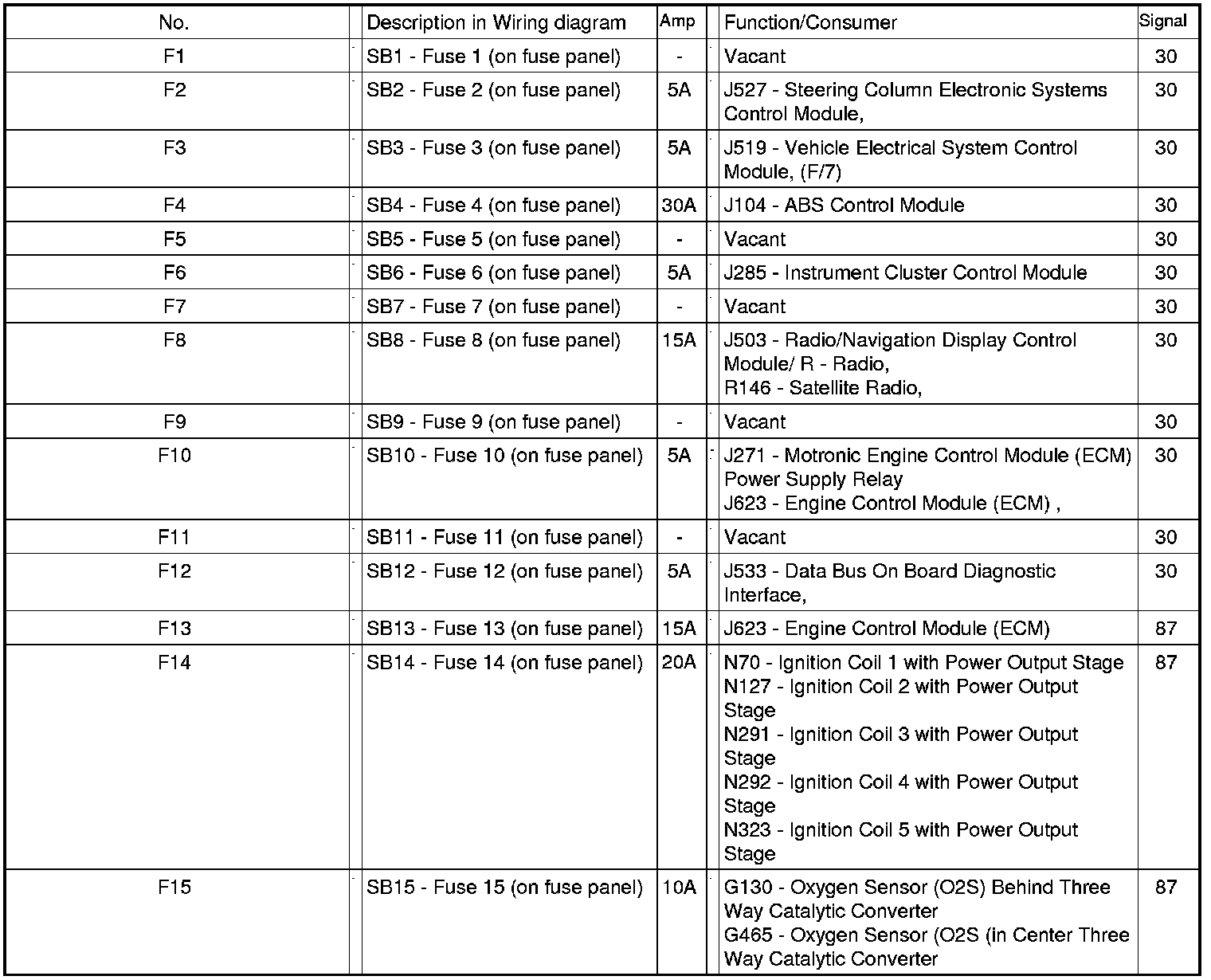

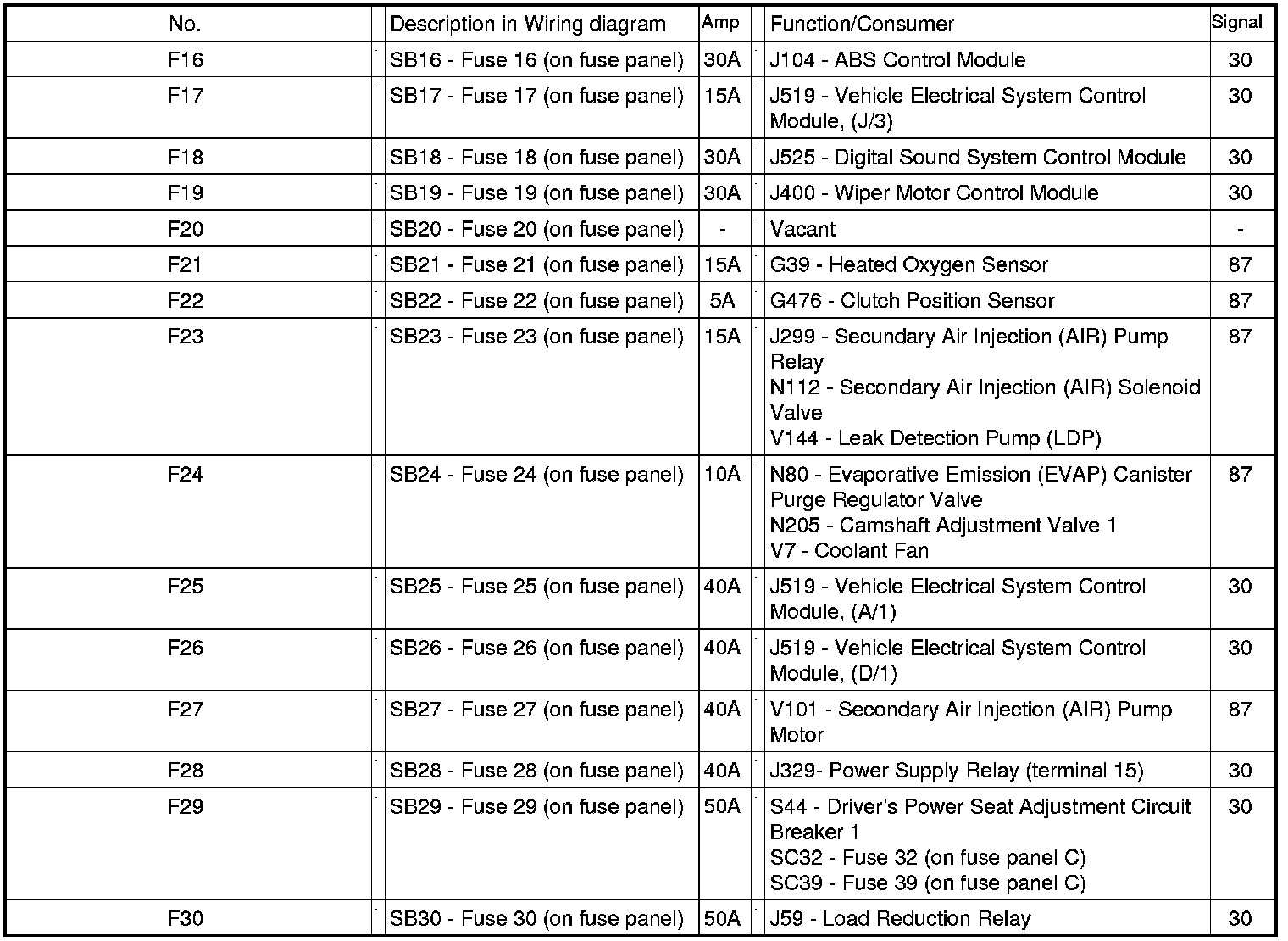

Fuses arrangements "SB" on Electronics Box (E-box), in engine compartment, left
Fuse colors
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown
5 A - beige
3 A - violet
