Fuse Arrangements "SC" On Fuse Panel, In Instrument Panel, Left
Relay and fuse arrangements, from January 2008,

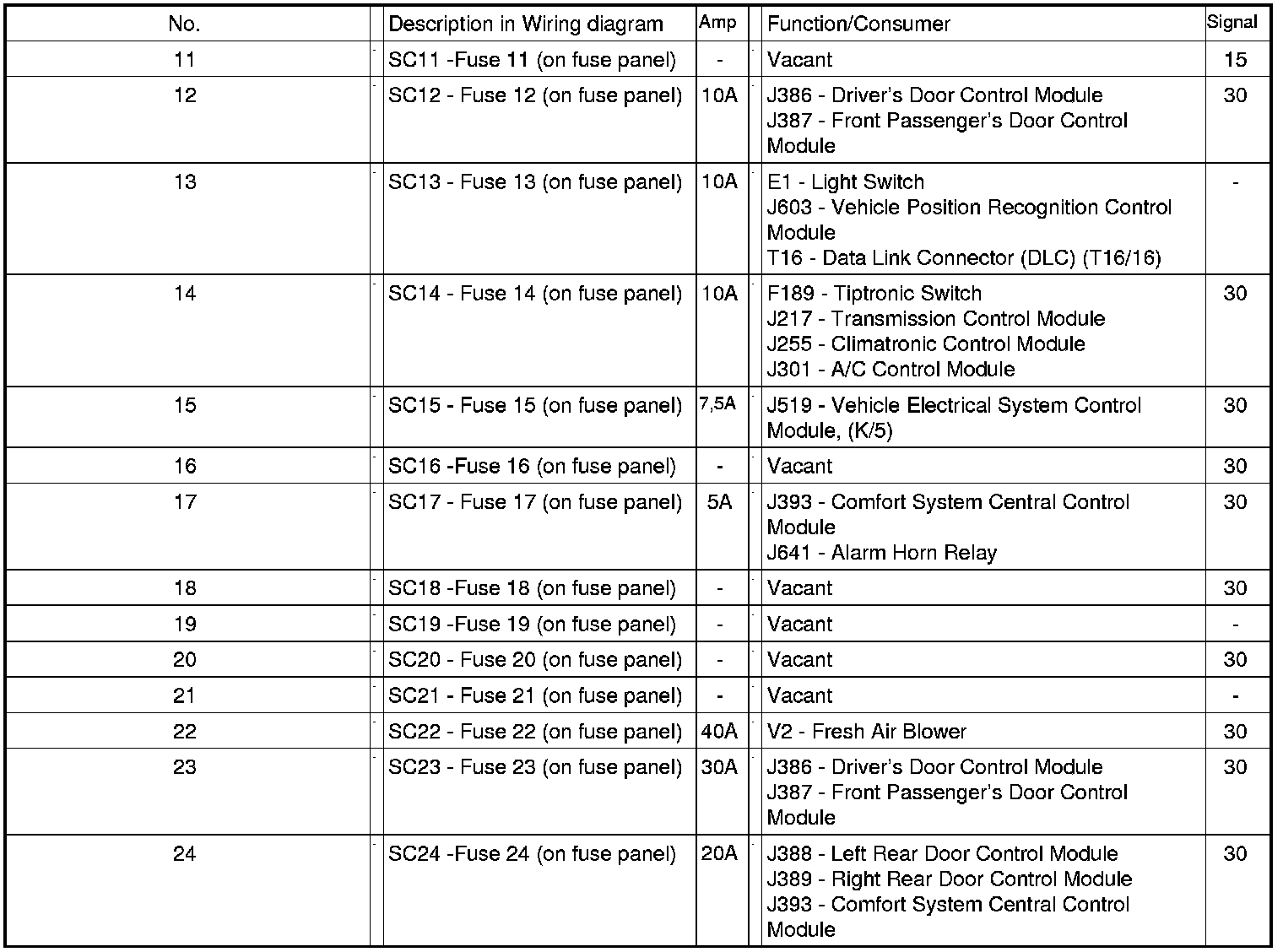

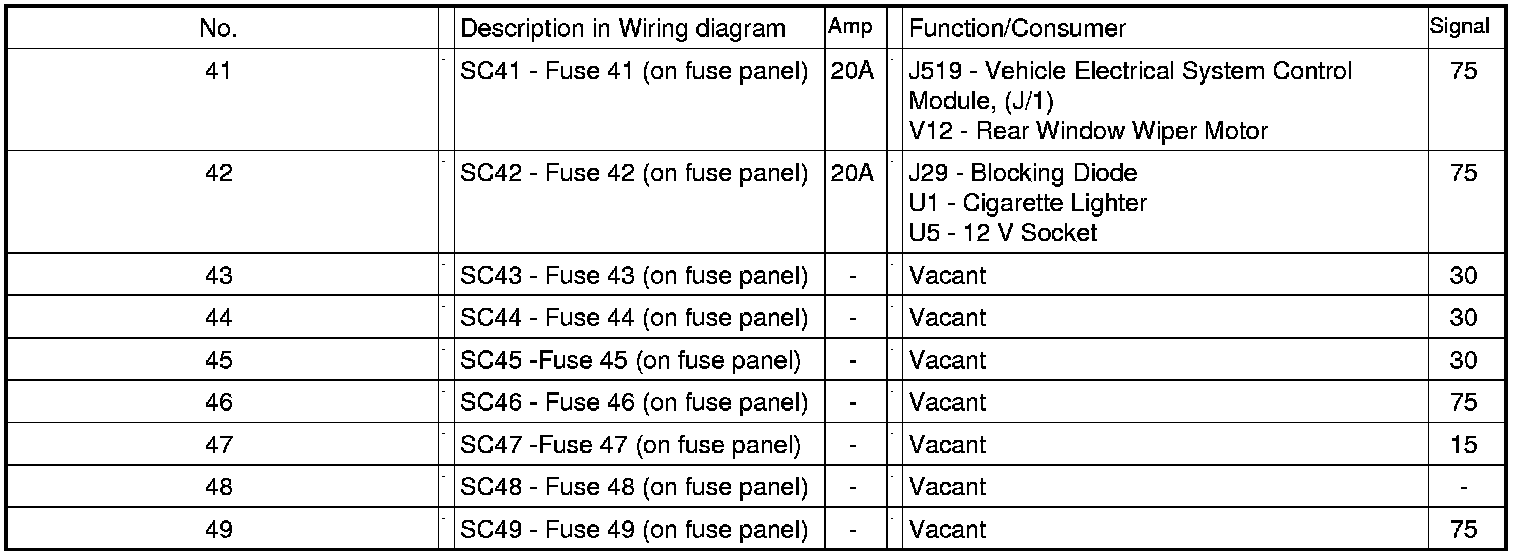

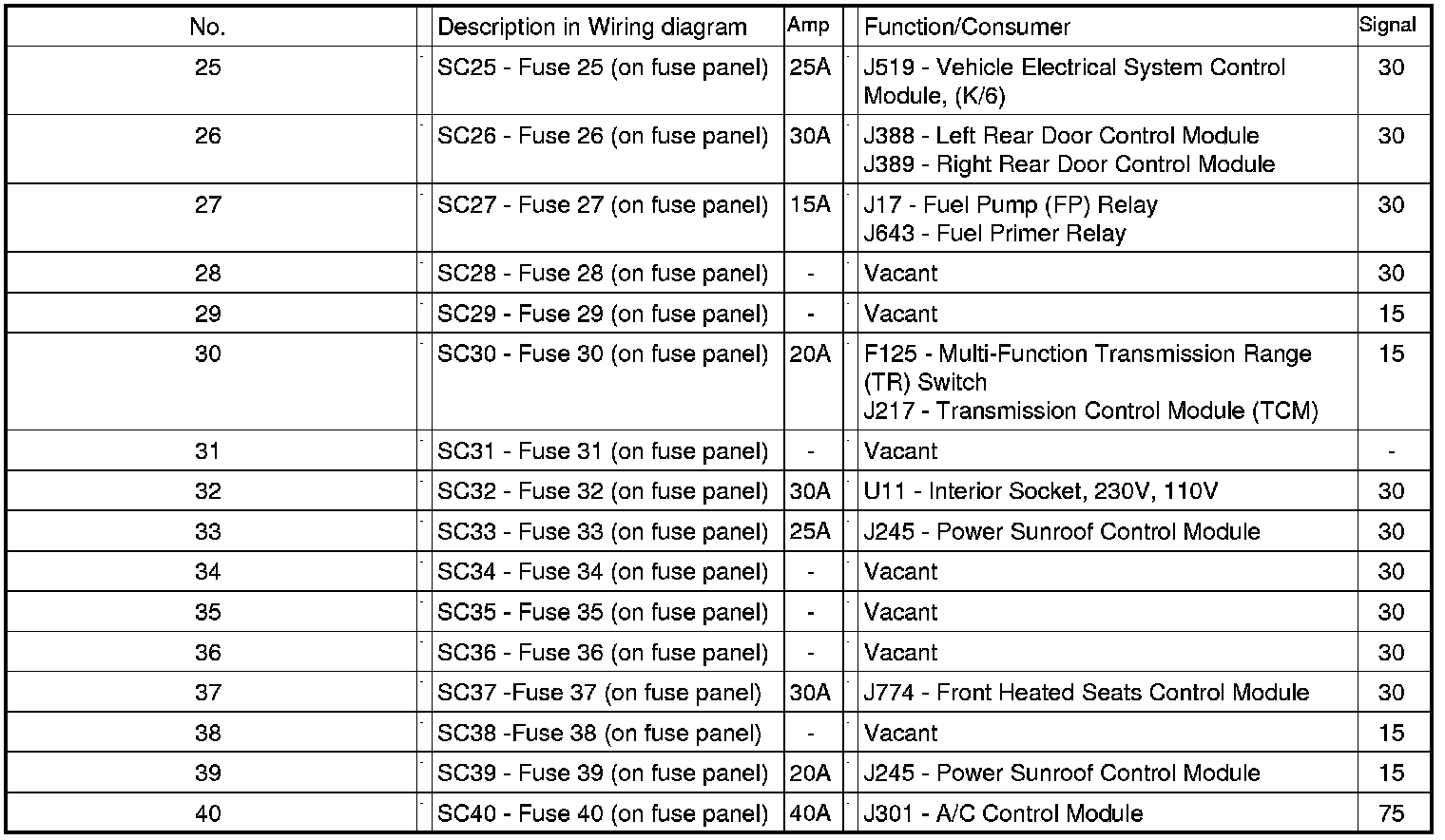

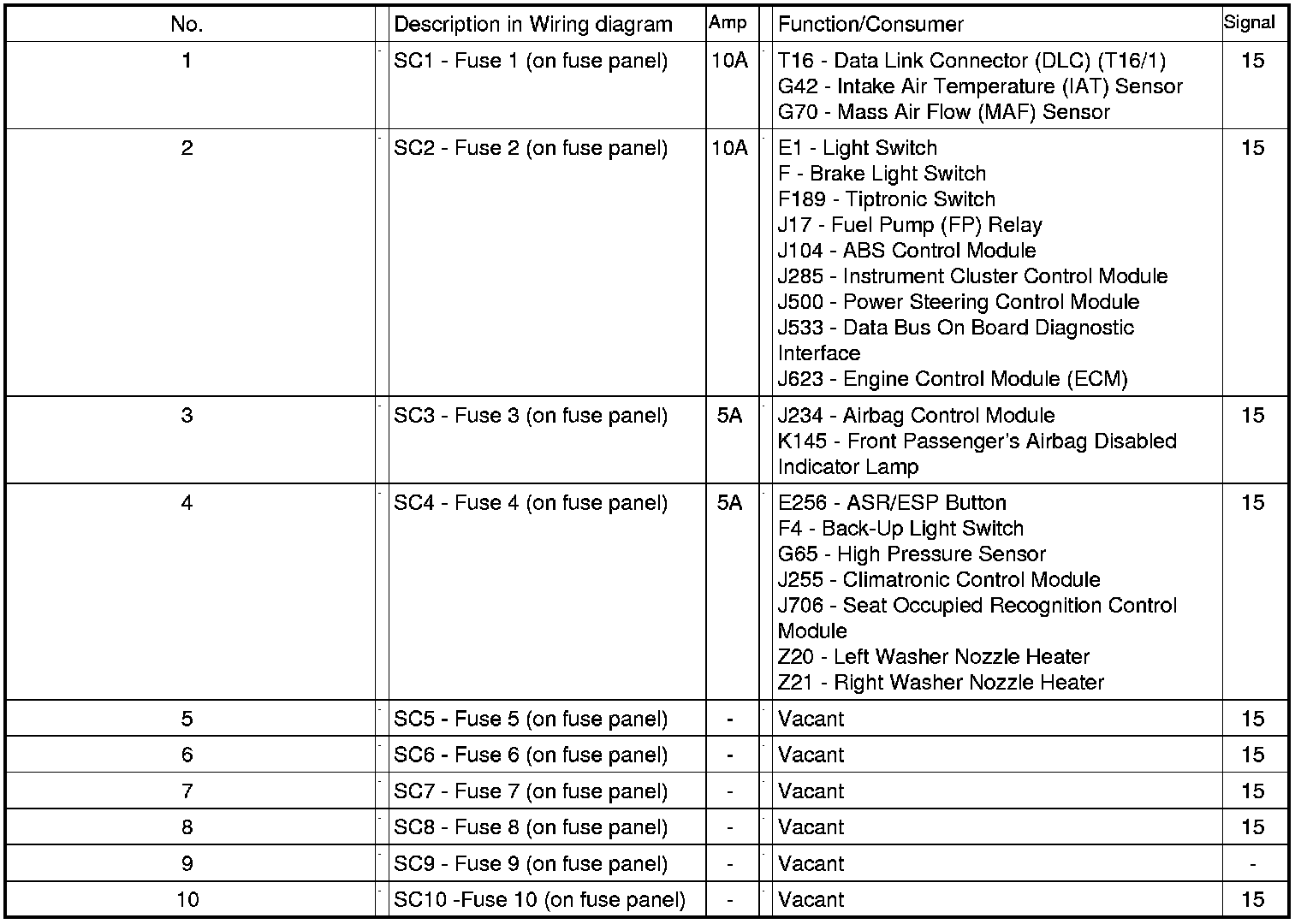

Fuse arrangements "SC" on fuse panel, in instrument panel, left
Fuse colors
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown
5 A - beige
3 A - violet
