Fuse Arrangements "SA" On Battery Fuse Panel Mounted To E-Box, In Engine Compartment, Left






Relay and fuse arrangements, from January 2008,

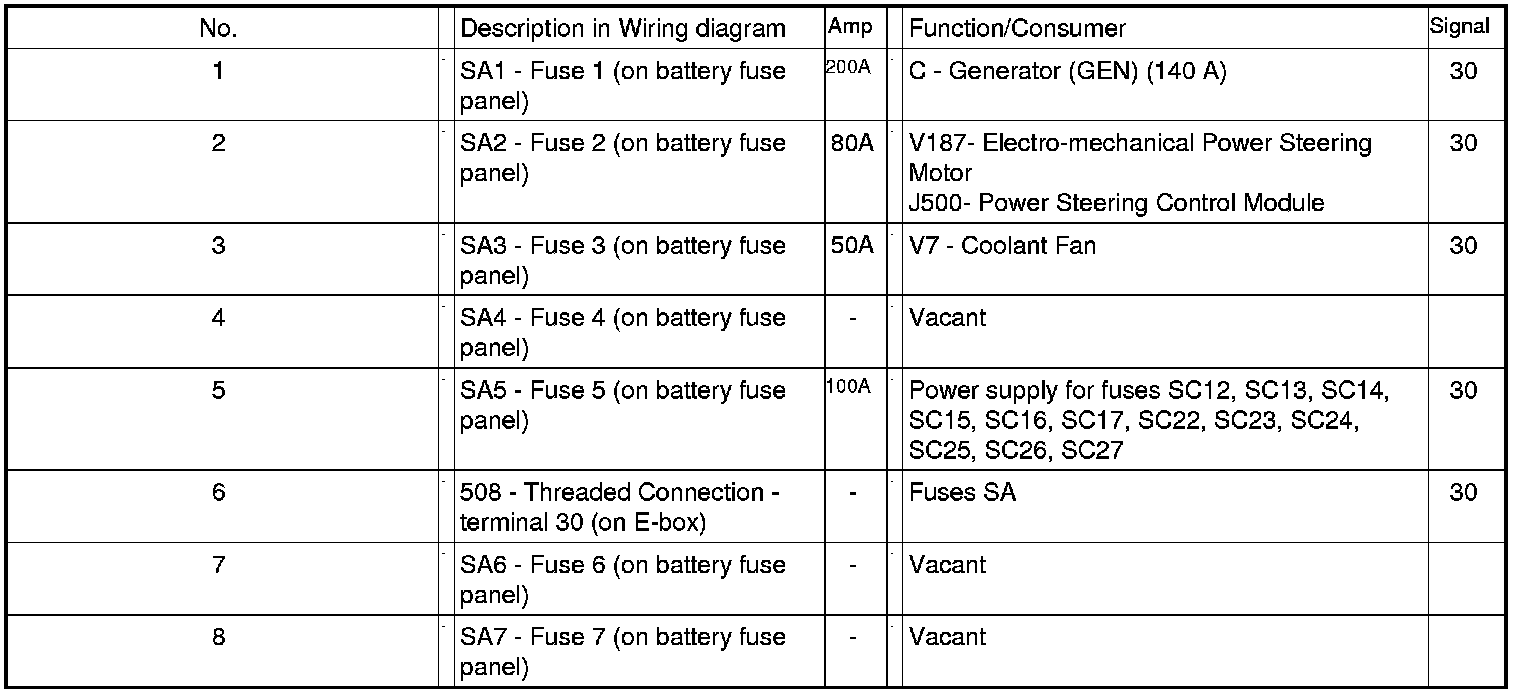

Fuse arrangements "SA" on battery fuse panel mounted to E-Box, in engine compartment, left




Tightening torques
