Home >> Volkswagen >> 2009 >> Jetta SportWagen (1K5) L4-2.0L DSL Turbo (CBEA) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Data

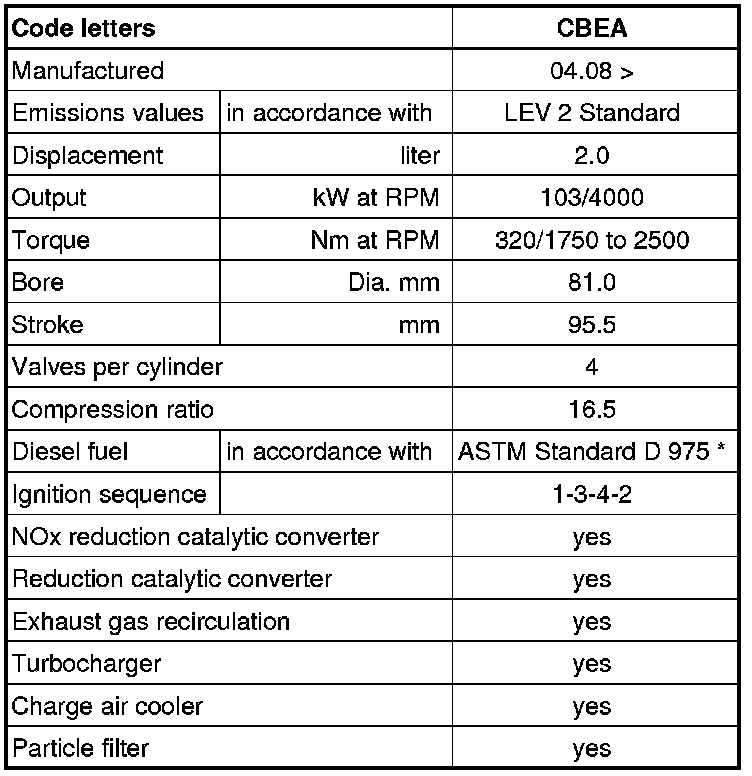

Engine Data






Engine Data





* With a sulfur content less than 15 mg/kg of diesel fuel
