Fuel Level Sensor: Diagrams

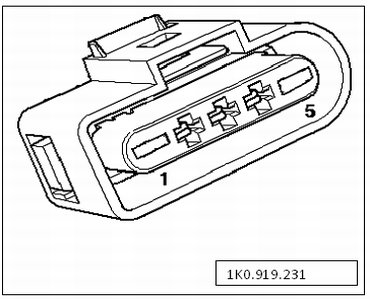

Engine Management System Connector Views

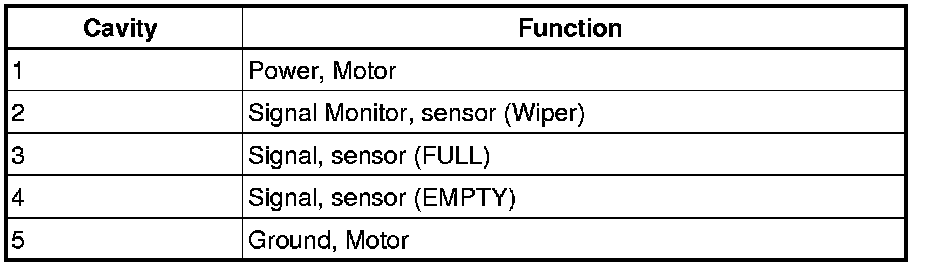

Transfer Fuel Pump (FP) / Fuel Level Sensor -G6- / -G -



All engines
