Brake Light Switch: Diagrams






Engine Management System Connector Views

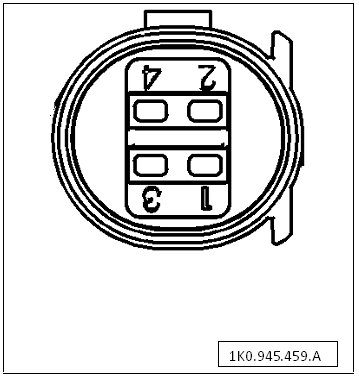

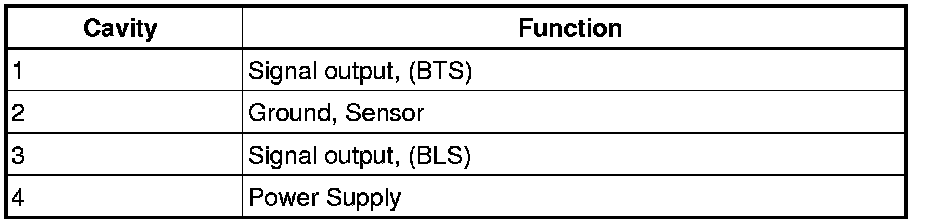

Brake Pedal Switch / Brake Light Switch -F47- / -F-



All engines
