Driver Front Airbag Crash Sensor -G283- And Front Passenger Front Airbag Crash Sensor -G284-






Airbag Systems: Connector Views

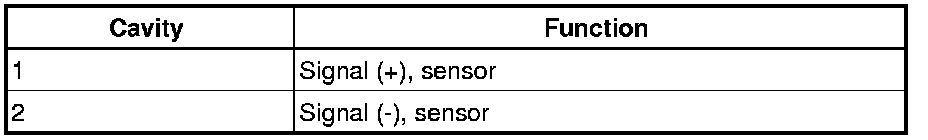

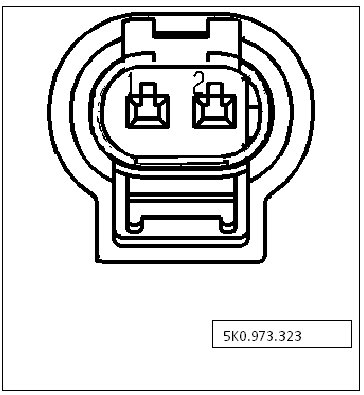

Driver front airbag crash sensor -G283- and Front passenger front airbag crash sensor -G284-
