Steering Control Module: Diagrams






Steering System - Connector Views

Power steering control module -J500-

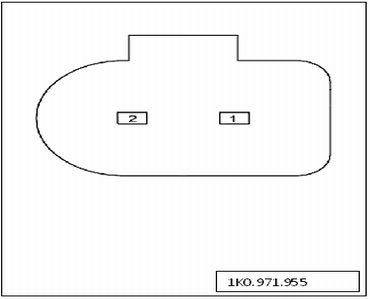

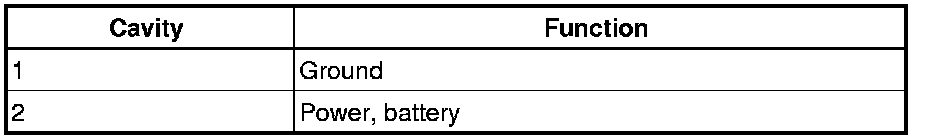

2 - pins

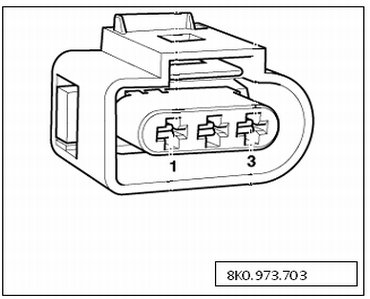

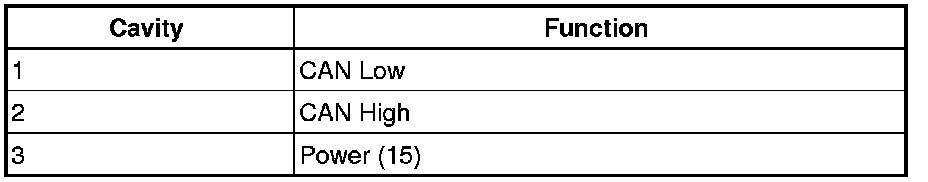

3 - Pins

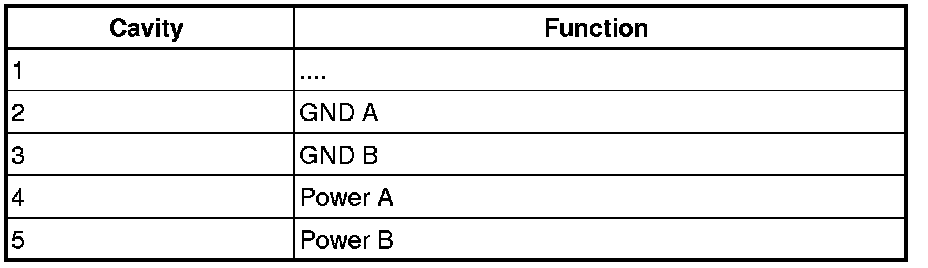

5 - pins






to Steering torque sensor -G269-
