-J527- Steering Column Electronic Systems Control Module

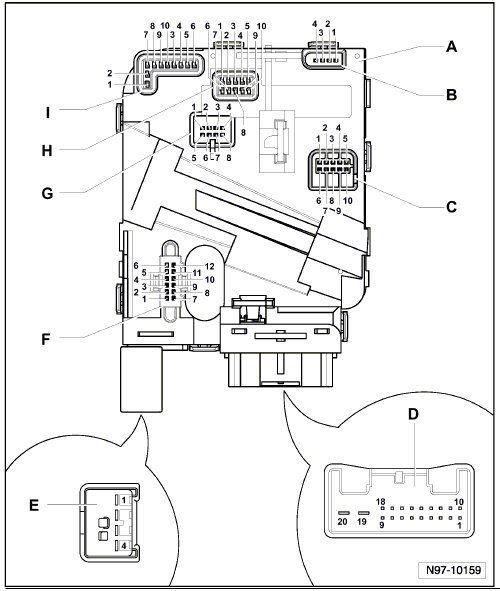

Control Modules - Control Module Multi-Pin Connector Views - , from January 2008,

-J527- Steering Column Electronic Systems Control Module







A - Steering Column Electronic Systems Control Module
Connector:
B = Connector - Airbag Control Module:

1 - Airbag 1 -

2 - Airbag 1 +

3 - Airbag 2 +

4 - Airbag 2 -
C = Connector - Turn Signal and Cruise Control System:

1 - Power Supply GRA Terminal 15

2 - Cruise control off

3 - Cruise control Res (+), Set (-)

4 - Cruise control on/off

5 - Cruise control Ground

6 - Cruise control illumination (Terminal 58)

7 - Headlight Flasher





8 - High beam

9 - Turn Signal

10 - Ground Turn Signal
D = 20 Pin Connector:

1 - Vacant

2 - Vacant

3 - Vacant

4 - Vacant

5 - Vacant

6 - Vacant

7 - Vacant

8 - Vacant

9 - Vacant

10 - Vacant





11 - Data Bus On Board Diagnostic Powertrain CAN-Bus Low

12 - Data Bus On Board Diagnostic Powertrain CAN-Bus High

13 - Cruise Control System, output

14 - Data Bus On Board Diagnostic Comfort System CAN-Bus Low

15 - Data Bus On Board Diagnostic Comfort System CAN-Bus High

16 - Multi-Function Transmission Range (TR) Switch (only Automatic - Transmission)

17 - Terminal 15

18 - Terminal 50

19 - Terminal 30 (B+)

20 - Ground (Terminal 31)
E = 4 Pin Connector:

1 - Airbag 1 -

2 - Airbag 1 +






3 - Vacant

4 - Vacant
F = Connector - Ignition/Starter Switch and Ignition Key Removal Lock:

1 - Vacant

2 - Vacant

3 - Ignition Key Removal Lock on Terminal 30

4 - Ignition Key Removal Lock Ground

5 - Vacant

6 - Vacant

7 - Output Ignition/Starter Switch Terminal 50

8 - Output Ignition/Starter Switch Terminal 30

9 - Output Ignition/Starter Switch Terminal S

10 - Output Ignition/Starter Switch Terminal X





11 - Output Ignition/Starter Switch Terminal P

12 - Output Ignition/Starter Switch Terminal 15
G = Connector - Wiper, Interval potentiometer and Multifunction system:

1 - Signal Wiper Switch

2 - Wiper Ground

3 - Vacant

4 - Vacant

5 - Signal Multi-function

6 - Multi-function Ground, Interval potentiometer

7 - Signal Interval position

8 - Vacant
H = Connector - Steering Angle Sensor:

1 - Light barrier 5

2 - Light barrier 3





3 - Light barrier 1

4 - Power Supply 12 Volts

5 - Power Supply 5 Volts

6 - Light barrier 6

7 - Light barrier 4

8 - Light barrier 2

9 - Ground

10 - Light barrier 7
I = Connector - Spiral Spring:

1 - Vacant

2 - Vacant

3 - Airbag 1 +

4 - Airbag 1 -

5 - Airbag 2 +

6 - Airbag 2 -

I = Connector - Spiral Spring:







7 - Ground for Spiral Spring, Multi-function steering wheel and Signal horn

8 - Cruise control off, Signal horn

9 - LIN-Bus, Ambient temperature sensor Steering Wheel Heating

10 - Power Supply Terminal 15 for Multi-function steering wheel






-J527- Location:
Below steering column => -arrow-
