-J525- Digital Sound System Control Module






Control Modules - Control Module Multi-Pin Connector Views - , from January 2008,

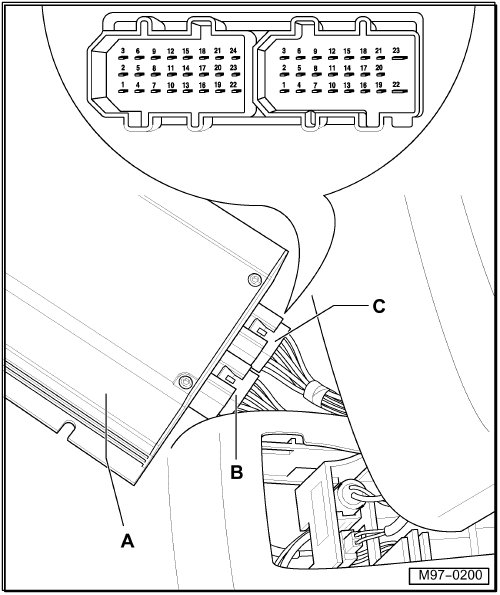

-J525- Digital Sound System Control Module







A - -J525- Digital Sound System Control Module, Location: below driver's seat
Conector:

B - 24 Pin Connector, at harness (T24)

C - 23 Pin Connector, at harness (T23)
