Ignition/Glow Plug System

Glow Plug Connectors

Special tools, testers and auxiliary items required

• Pliers (3314)

Removing

CAUTION!
Before removing the glow plug connectors, note that different installation depths for the glow plugs in their respective cylinders.

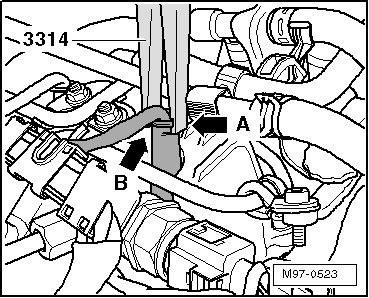

- Position pliers (3314) with the groove - arrow A - on the upper collar of the connector - arrow B - and press together lightly.





CAUTION!
Position the pliers so they do not touch or damage the cable.

Only use suitable tools.

Other unsuitable tools can damage the connector.

If the connector is damaged when removing it, replace the complete wiring harness including the connector (a connector cannot be replaced separately).

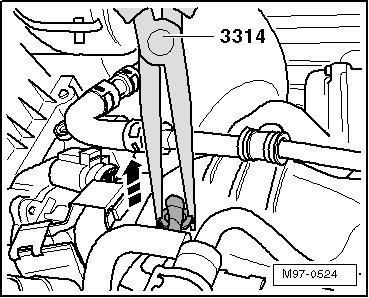

- Carefully pull the connector off the glow plug in the direction of the arrow with the pliers (3314).





CAUTION!
Do not pull abruptly on the connector.

Do not damage the connector wire.

Do not press the pliers together too firmly or the connector will be damaged.

The connector is surrounded by a protective sleeve which can be replaced if damaged.

Installing

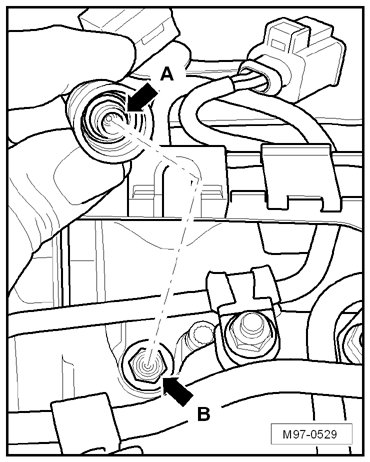

- Guide the center terminal on the connector - arrow A - into the glow plug socket - arrow B - by hand.





- Press the glow plug connector - 1 - on by hand until it engages.
