Air Temperature Sensor ( Ambient / Intake ): Diagrams






Engine Management System Connector Views

Charge air pressure sensor -G31- & Intake air temperature sensor -G42-

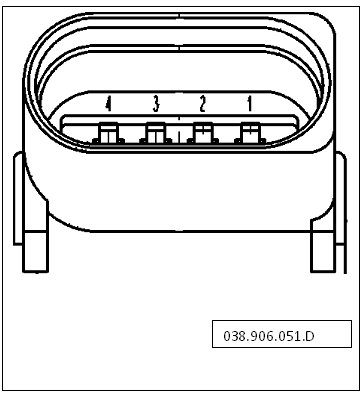

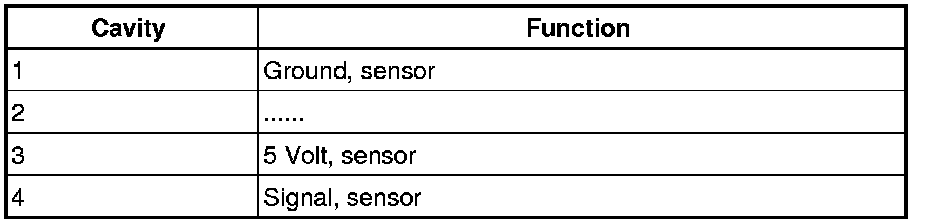

Gasoline engines - 2.0L - G31

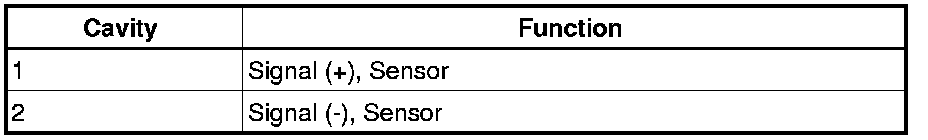

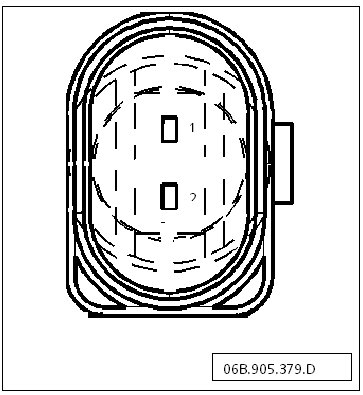

Gasoline engine -2.0L - G42

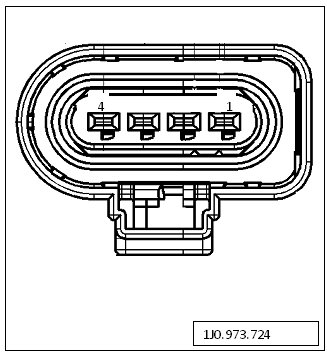

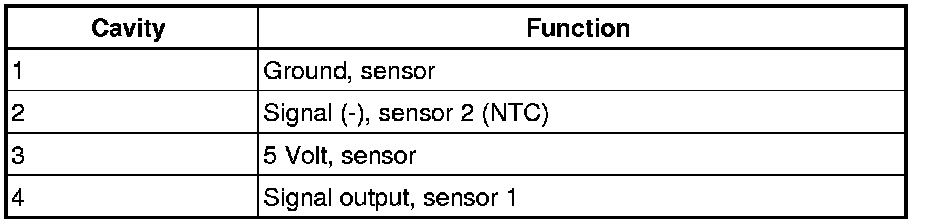

CBEA - 2.0L TDI - G42 and G31
