Accelerator Pedal Module

Accelerator Pedal Module

Special tools, testers and auxiliary items required

• Release tool (T10238)

Removing

- Remove steering column cover - arrows -.





- Pry out cap with a screwdriver.

- Remove mounting bolt.

- Slide release tool (T10238) as shown into openings designated for it until it stops and remove accelerator pedal module.





- Disconnect harness connector from accelerator pedal module.

Installing

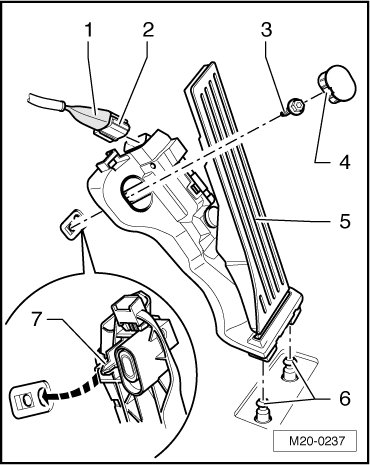

- Connect harness connector - 2 - to accelerator pedal module - 5 - and slide rubber grommet - 1 - again on to harness connector.





- Press accelerator pedal module on to securing studs - 6 -.

- Insert centering pin - 7 - into hole on vehicle floor.

- Secure accelerator pedal module with the bolt - 3 -.

• Tightening specifications, refer to --> [ Accelerator Pedal Module Assembly Overview ] Accelerator Pedal Module Assembly Overview

- Install cap - 4 -.

- Install steering column cover - arrows -.
