Interior Monitoring Deactivation Switch/Deactivate Vehicle Inclination Sensor Button

Lights and Switches in Front Doors and B-Pillar

Interior Monitoring Deactivation Switch/Deactivate Vehicle Inclination Sensor Button

The Interior Monitoring Deactivation Switch (E267)/Deactivate Vehicle Inclination Sensor Button (E360) are installed together in one unit in the lower B-pillar trim.

From model year 2007, the form of the switch changed but the functionality is the same.

Special tools, testers and auxiliary items required

• Trim removal wedge (VAS 3409)

CAUTION!
• Turn off the ignition and all electrical consumers.

• Remove ignition key.

• When removing and installing components in a visible area (switches, covers, trim, etc.), mask off the areas at which a prying tool (VAS 3409), screwdriver) will be positioned, using commercially available adhesive tape.

Removing

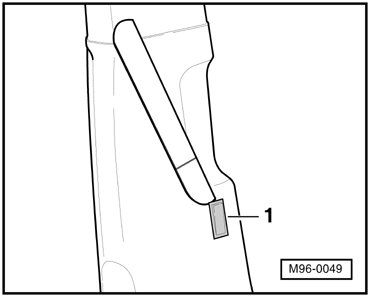

- Unclip the switch - 1 - from the trim using the (VAS 3409).

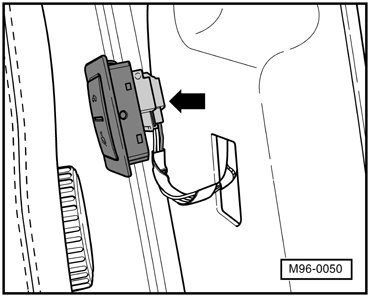

- Disconnect connectors - arrows -.





Installing

Install in reverse order of removal.
