Fog/Driving Lamp Bulb: Service and Repair

Fog Lamp

• The following illustrations depict removal and installation of left fog lamp.

CAUTION!
• Turn off the ignition and all electrical consumers.

• Remove ignition key.

Removing

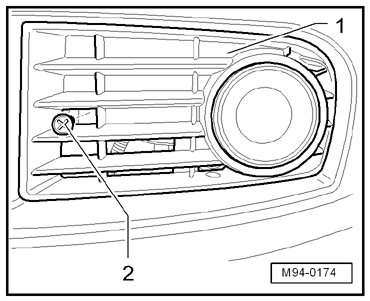

- Remove bolt - 2 -.

- Unclip cover cap - 2 - from locking mechanisms.

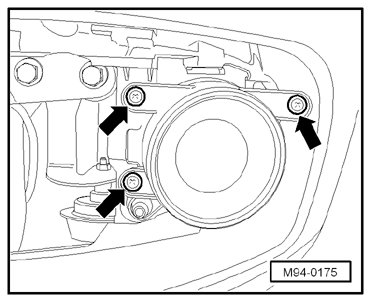

- Remove screws - arrows -.





- Remove fog light housing from bumper and disconnect harness connector - arrow -.





Installing

Install in reverse order of removal, noting the following:

- Check headlamp for function.

- Check and adjust the fog lamps.
