2.0L TDI/CR, Engine Code CBEA, Top View

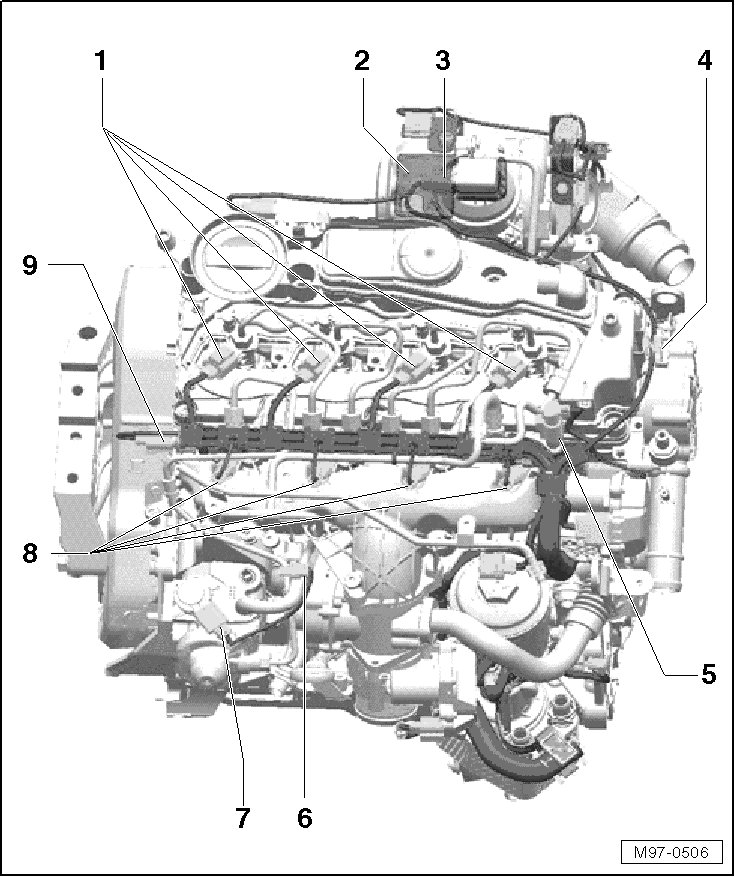

Engine Wiring Harness Assembly Overview, 2.0L TDI/CR, Engine Code CBEA, Top View





1 Injection Unit Connectors, 2-Pin

2 Heat Shield

• Note the installation location. Refer to --> [ ECM Connector Heat Shield ] ECM Connector Heat Shield.

• Replace if damaged.

3 Charge Pressure Actuator Position Sensor (G581) Connector, 3-Pin

4 Bracket on the Cylinder Head Cover

• For the wiring harness.

5 Fuel Pressure Regulator Valve (N276) Connector, 2-Pin

6 Fuel Temperature Sensor (G81) Connector, 2-Pin

7 Fuel Metering Valve (N290) Connector, 2-pin

8 Glow Plug Connectors

CAUTION!
• The connector is covered with a protective sleeve that can be replaced if damaged.

• Follow the procedure Glow Plug Connectors, Removing and Installing exactly. Refer to --> [ Glow Plug Connectors ] Glow Plug Connectors.

9 Fuel Pressure Sensor (G247) Connector, 3-Pin
