2.0L TDI/CR, Engine Code CBEA, Exhaust Side

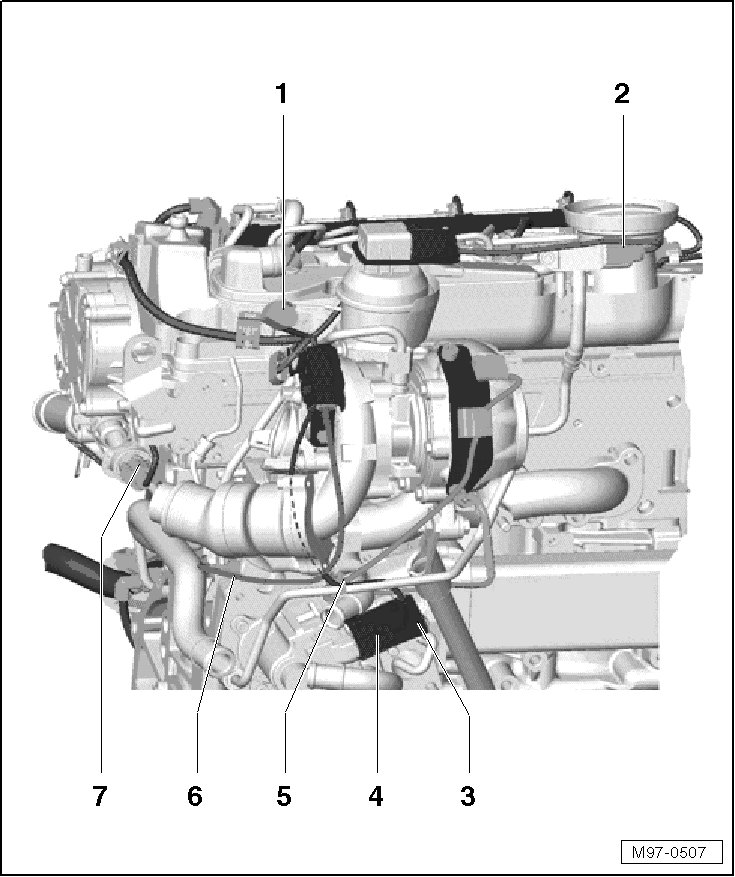

Engine Wiring Harness Assembly Overview, 2.0L TDI/CR, Engine Code CBEA, Exhaust Side





1 EGR Temperature Sensor (G98) Connector



2 Exhaust Pressure Sensor 2 (G451) Connector, 3-Pin

• Note the installation location.



3 Heat Shield

• Note the installation location. Refer to --> [ ECM Connector Heat Shield ] ECM Connector Heat Shield.

• Replace if damaged.

4 EGR Valve 2 (N213) Connector



5 Cable Tie on Control Wire



• For the wiring harness.

• Note the installation location.

• Replace.

6 EGR Temperature Sensor (G98)



7 Coolant Temperature Sensor (G62), 2-Pin
