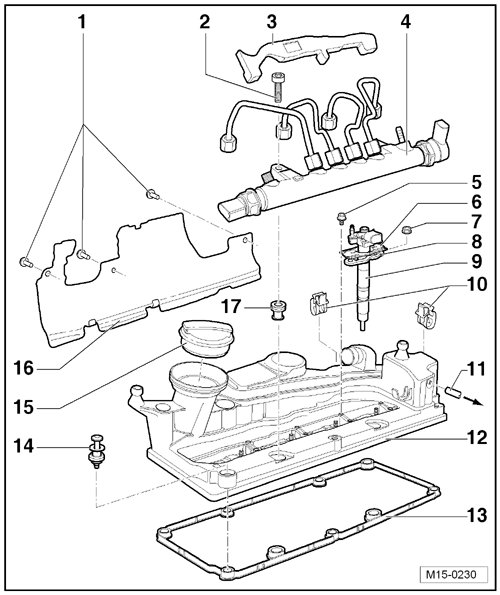

Cylinder Head Cover Assembly Overview

Cylinder Head Cover Assembly Overview





1 5 Nm

2 22 Nm

3 Protective Strip

• For rail element (high pressure reservoir) and high pressure lines

4 Rail Element (high Pressure Reservoir)

• With high pressure lines

• Do not change the angles of the high pressure lines

• Refer to --> [ Fuel System Assembly Overview ] Removal and Replacement.

5 5 Nm

6 Injection Unit Cover

7 10 Nm

8 Tensioning Bracket

• Replace

• Note installation position --> [ Tensioning Bracket Installation Position ] Removal and Replacement

9 Injection Unit (Piezo Injector)

• Refer to --> [ Fuel System Assembly Overview ] Removal and Replacement.

10 Bracket

• For wiring harness

11 Vacuum Hose

• Make sure it is seated correctly and is routed without kinks

• To wastegate bypass regulator valve (N75)

• Connection diagram for vacuum hoses, refer to --> [ Vacuum Hose Connection Diagram ] [1][2]Diagrams

12 Cylinder Head Cover

• Removing and installing, refer to --> [ Cylinder Head Cover ] Cylinder Head Cover.

13 Gasket

• Replace if damaged or leaking

14 10 Nm

• Follow the loosening and tightening sequence. Refer to --> [ Cylinder Head Cover ] Cylinder Head Cover.

15 Cap

• Replace gaskets if damaged

16 Heat Shield

17 Bushing

• For rail element (high pressure reservoir) - mounting

• Replace if damaged
