Engine Cover

Engine Cover

Removing

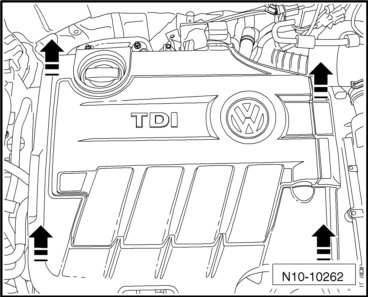

- Pull corners of the engine cover - arrows - up out of the mounting points.





Installing

CAUTION!

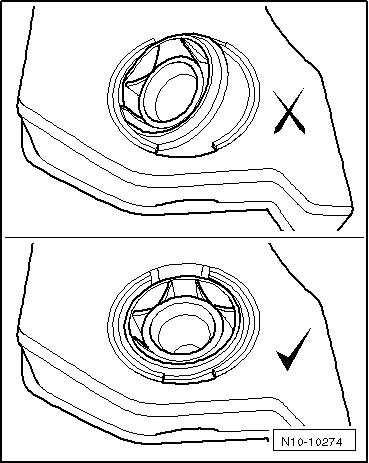

Check the position of the 4 mounting elements (ball sockets) before assembling the engine cover. Bring them back into the correct position if necessary. Otherwise the engine cover will be damaged.

- Press ball sockets on the engine cover into the correct installation position if necessary.





- Position engine cover on the mounting points and press the corners into the retainers.
