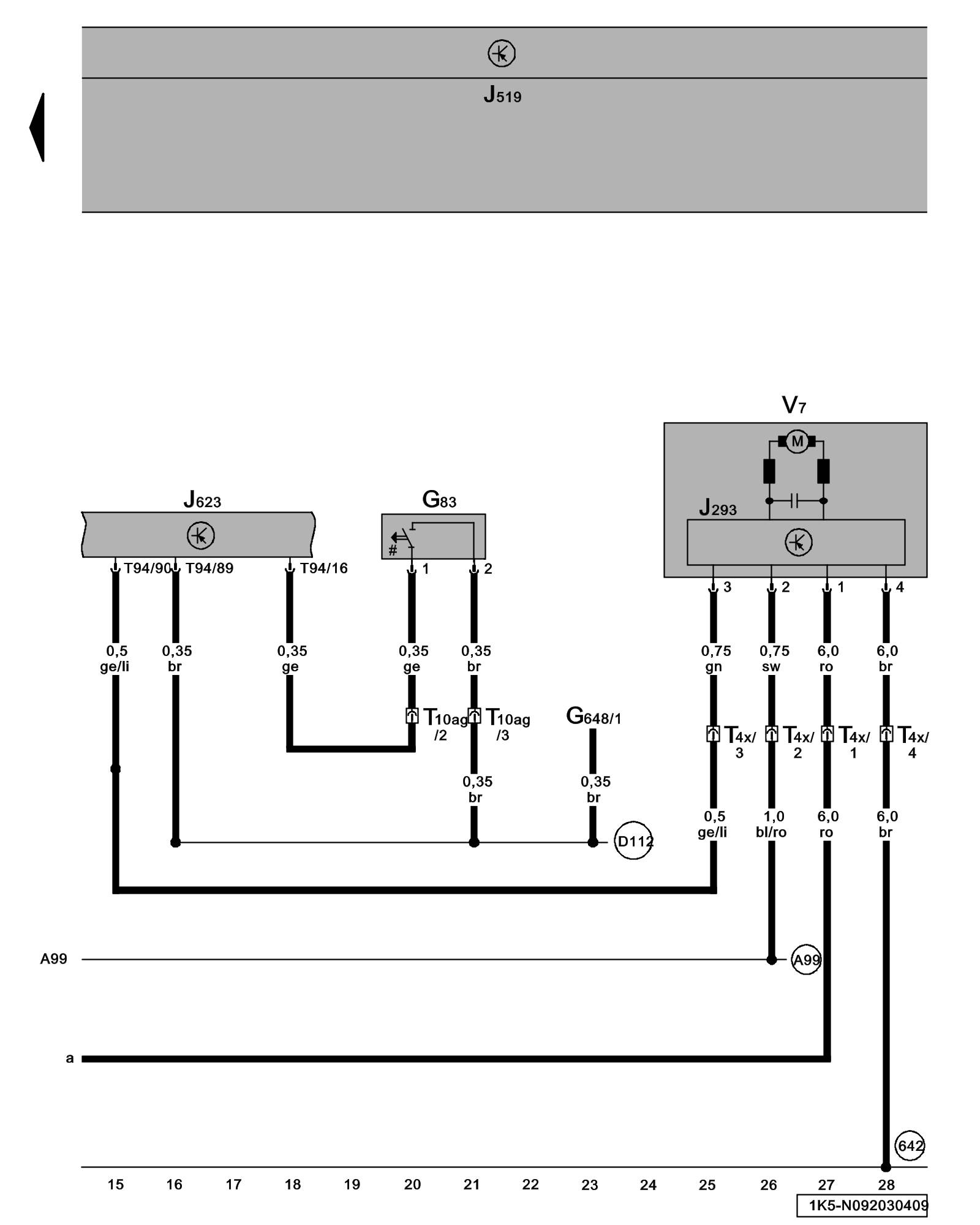

Diagram 92/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Coolant Temperature (ECT) Sensor (on Radiator), Vehicle Electrical System Control Module, Engine Control Module (ECM), Coolant Fan





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G83 - Engine Coolant Temperature (ECT) Sensor (on Radiator) Engine Coolant Temperature Sensor On Radiator -G83- Locations

G648 - Exhaust Gas Temperature (EGT) Sensor 4 Exhaust Gas Temperature Sensor 4 -G648- Locations

J293 - Coolant Fan Control (FC)Control Module Locations

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

T4x - 4-Pin Connector

T10ag - 10-Pin Connector

T94 - 94-Pin Connector

V7 - Coolant Fan Locations

(642) - Ground Connection (on electronic fan control)

(A99) - Connection 1 (87) (in instrument panel wiring harness)

(D112) - Connection 10 (in engine compartment wiring harness)
