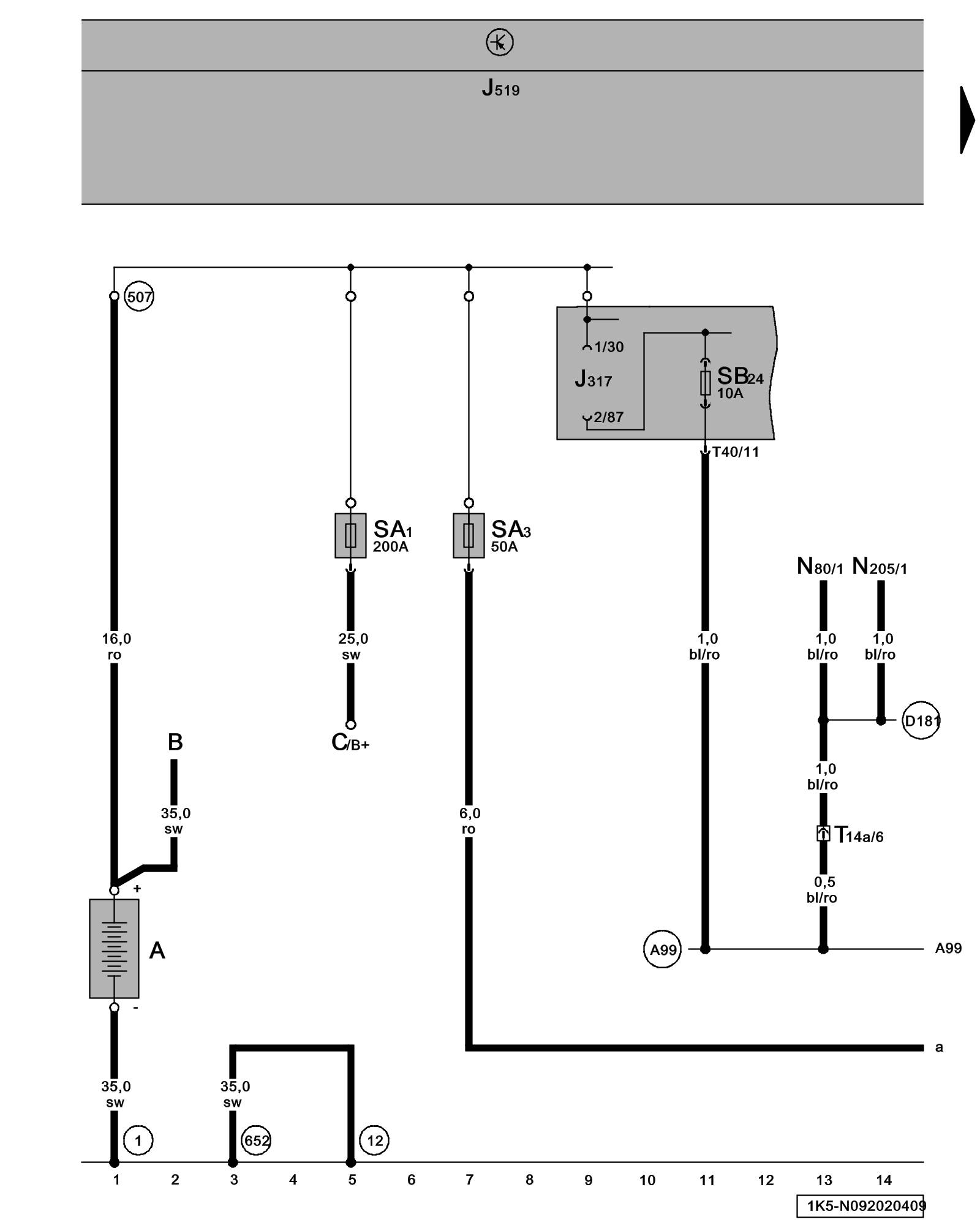

Diagram 92/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Battery, Power Supply Relay (terminal 30, B+), Vehicle Electrical System Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator (GEN)

J317 - Power Supply Relay (terminal 30, B+)* Overview Of Position Of Relays

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

N80 - Evaporative Emission (EVAP) Canister Purge Regulator Valve Locations

N205 - Camshaft Adjustment Valve 1 Locations

SA1 - Fuse 1 (on fuse panel A) Position Of Fuses (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008

SA3 - Fuse 3 (on fuse panel A) Position Of Fuses (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008

SB24 - Fuse 24 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

T14a - 14-Pin Connector

T40 - 40-Pin Connector

(1) - Ground strap, battery to body

(12) - Ground Connection (in engine compartment, left)

(507) - Threaded Connection - terminal 30 (on battery fuse holder)

(652) - Transmission/Engine Ground Connection

(A99) - Connection 1 (87) (in instrument panel wiring harness)

(D181) - Connection 2 (87a) (in engine wiring harness)

(*) - Refer to appropriate engine wiring diagram
