Diagram 121/6 (Tracks 57-70)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

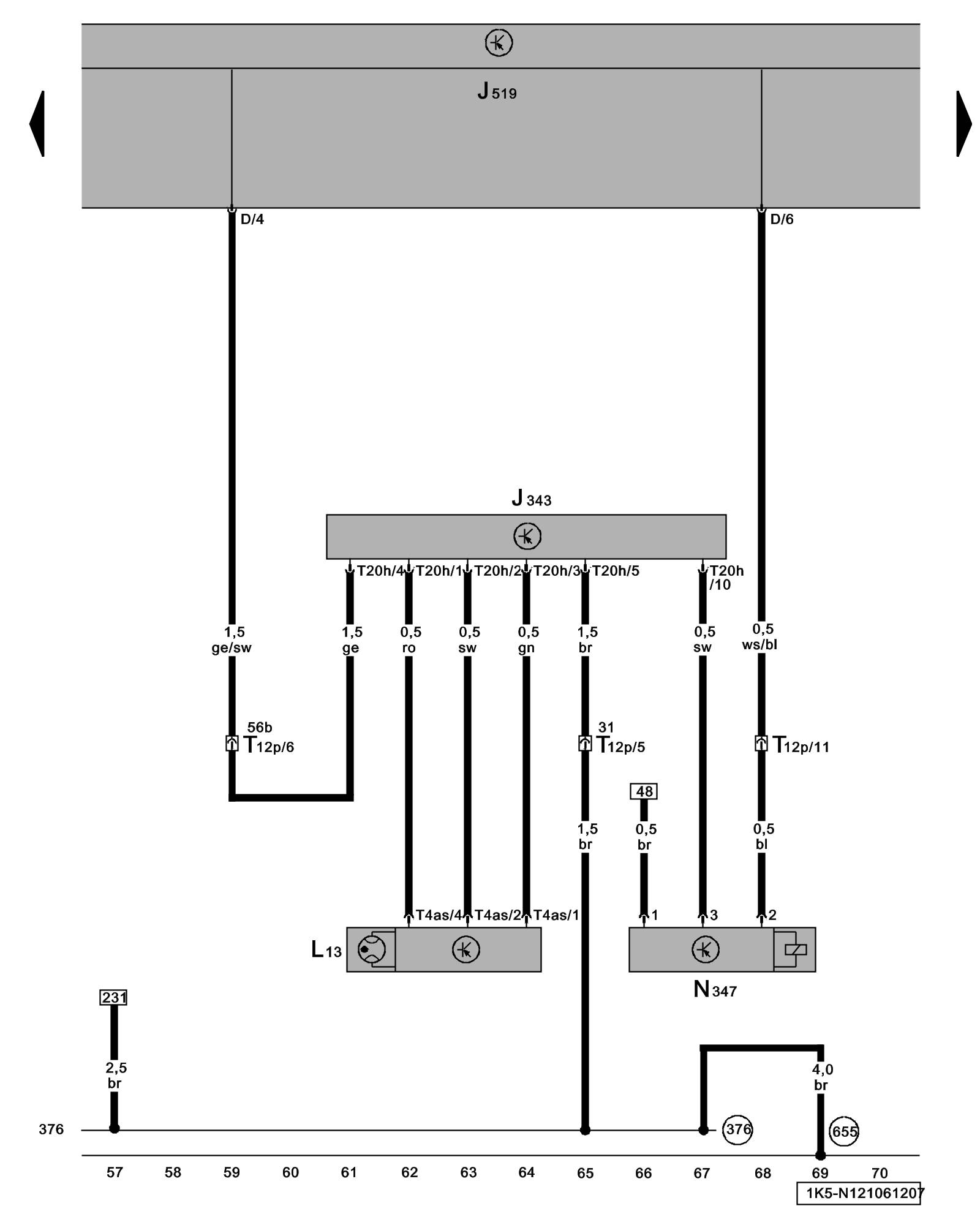

Left High-intensity Gas Discharge Lamp Control Module, Vehicle Electrical System Control Module, Left High Intensity Gas Discharge (HID) Lamp, Left High/Low Beam Switch-Over Solenoid





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J343 - Left High-intensity Gas Discharge Lamp Control Module

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

L13 - Left High Intensity Gas Discharge (HID) Lamp

N347 - Left High/Low Beam Switch-Over Solenoid

T4as - 4-Pin Connector

T12p - 12-Pin Connector

T20h - 20-Pin Connector

(376) - Ground Connection 11 (in main wiring harness)

(655) - Ground Connection (on left headlamp)

Previous Diagram 121/5 (Tracks 43-56)

Next Diagram 121/7 (Tracks 71-84)
