Diagram 12/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

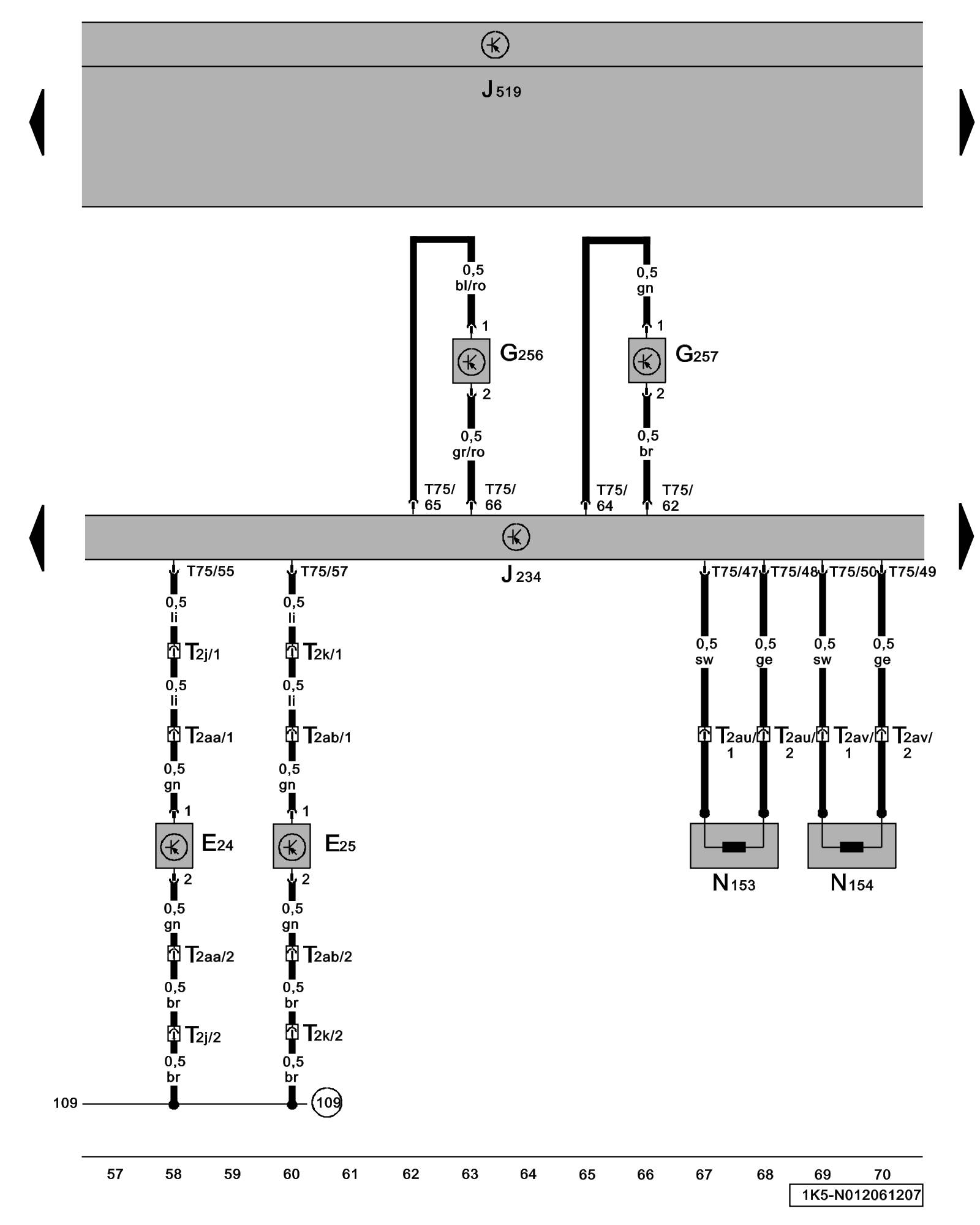

Driver and Front Passenger Seat Belt Switch, Driver and Front Passenger Rear Side Airbag Crash Sensor, Airbag Control Module, Driver and front Passenger Safety Belt Tensioner Igniter 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E24 - Driver Safety Belt Switch

E25 - Front Passenger Safety Belt Switch

G256 - Rear Side Airbag Crash Sensor (on Driver side) Locations

G257 - Rear Side Airbag Crash Sensor (on front Passenger side) Locations

J234 - Airbag Control Module Control Modules In Interior, From July 2007

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

N153 - Driver Safety Belt Tensioner Igniter 1 Locations

N154 - Front Passenger Safety Belt Tensioner Igniter 1 Locations

T2j - 2- Pin Connector, yellow, in front footwell, left

T2k - 2- Pin Connector, yellow, in front footwell, right

T2aa - 2- Pin Connector, yellow, below driver's seat

T2ab - 2- Pin Connector, yellow, below front passenger's seat

T2au - 2- Pin Connector

T2av - 2- Pin Connector

T75 - 75-Pin Connector, at J234

(109) - Ground Connection (in airbag wiring harness)

Previous Diagram 12/5 (Tracks 43-56)

Next Diagram 12/7 (Tracks 71-84)
