Diagram 6/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

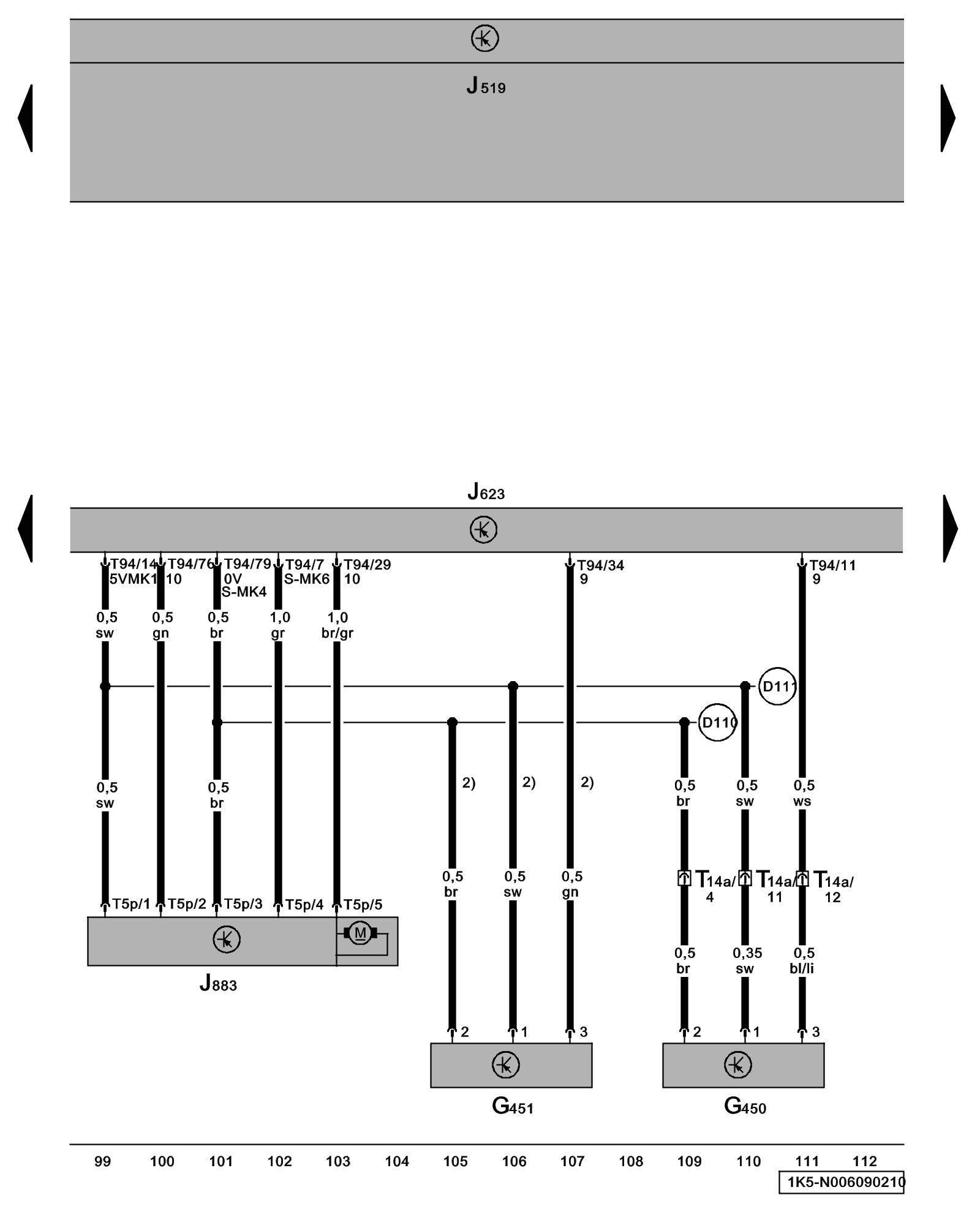

Exhaust Pressure Sensor 1 and 2, Vehicle Electrical System Control Module, Engine Control Module (ECM), Exhaust Flap Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G450 - Exhaust Pressure Sensor 1 [1][2]Diagrams Locations

G451 - Exhaust Pressure Sensor 2 Locations

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

J883 - Exhaust Flap Control Module Locations [1][2]Diagrams

T5p - 5-Pin Connector

T14a - 14-Pin Connector

T94 - 94-Pin Connector

(D110) - Connection 8 (in engine compartment wiring harness)

(D111) - Connection 9 (in engine compartment wiring harness)

2) - From December 2008

Previous Diagram 6/8 (Tracks 85-98)

Next Diagram 6/10 (Tracks 113-126)
