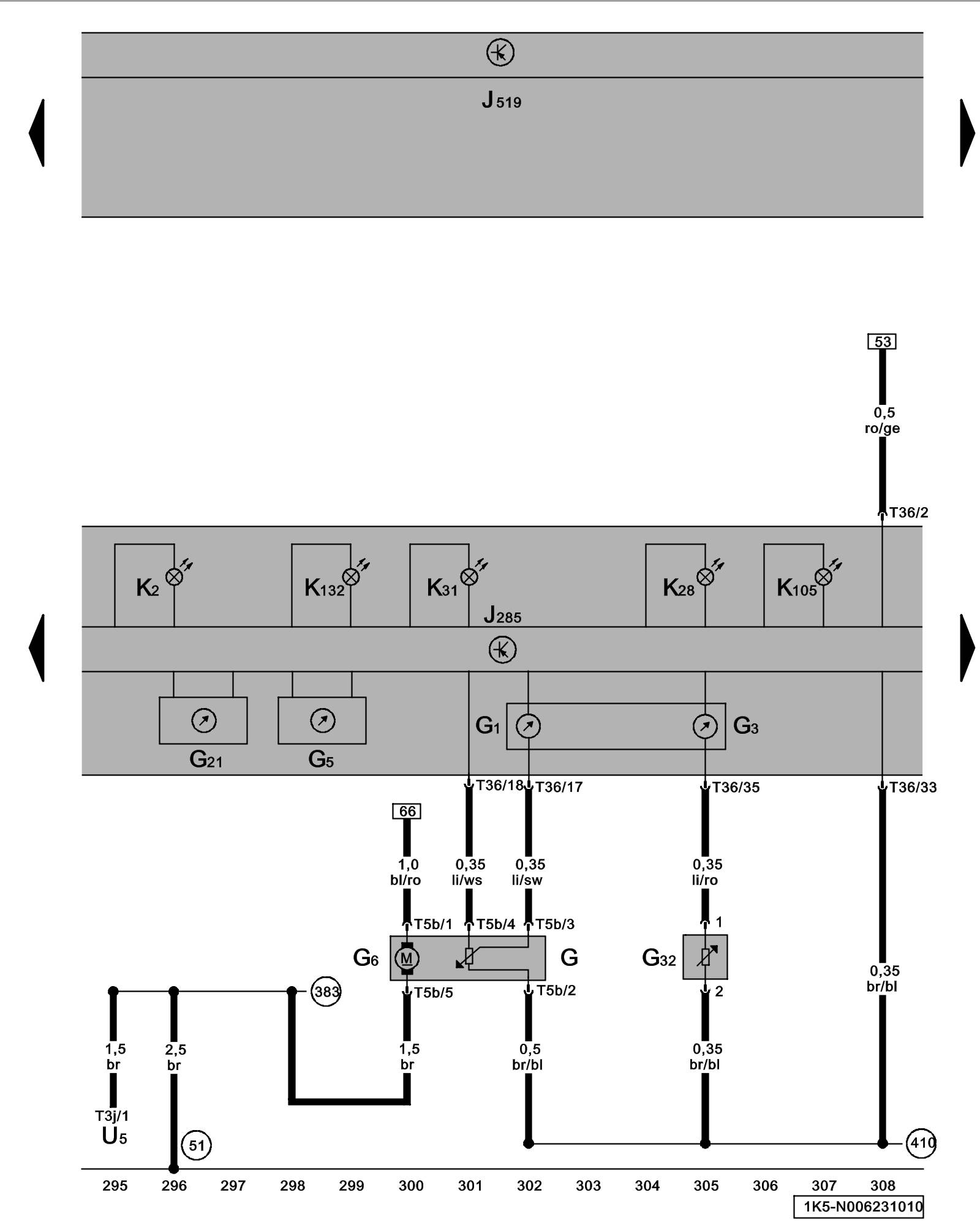

Diagram 6/23 (Tracks 295-308)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuel Level Sensor, Fuel Gauge, Engine Coolant Temperature (ECT) Gauge, Tachometer, Transfer Fuel Pump (FP), Speedometer, Engine Coolant Level (ECL) Sensor, Instrument Cluster Control Module, Generator (GEN) Warning Lamp, Engine Coolant Level/Temperature (ECL/ECT) Warning Lamp, Cruise Control Indicator Lamp, Fuel Reserve Warning Lamp, Electronic Power Control (EPC) Warning Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G - Fuel Level Sensor Overview Of Position Of Relays

G1 - Fuel Gauge

G3 - Engine Coolant Temperature (ECT) Gauge

G5 - Tachometer

G6 - Transfer Fuel Pump (FP) Locations [1][2]Diagrams

G21 - Speedometer

G32 - Engine Coolant Level (ECL) Sensor Locations [1][2]Coolant Level Sensor

J285 - Instrument Cluster Control Module Control Modules In Interior, From July 2007

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

K2 - Generator (GEN) Warning Lamp

K28 - Engine Coolant Level/Temperature (ECL/ECT) Warning Lamp

K31 - Cruise Control Indicator Lamp

K105 - Fuel Reserve Warning Lamp

K132 - Electronic Power Control (EPC) Warning Lamp

T3j - 3-Pin Connector

T5b - 5-Pin Connector

T36 - 36-Pin Connector

U5 - 12 V Socket

(51) - Ground Connection (in luggage compartment, right)

(410) - Sensor Ground Connection 1 (in main wiring harness)

(383) - Ground Connection 18 (in main wiring harness)
