Diagram 6/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

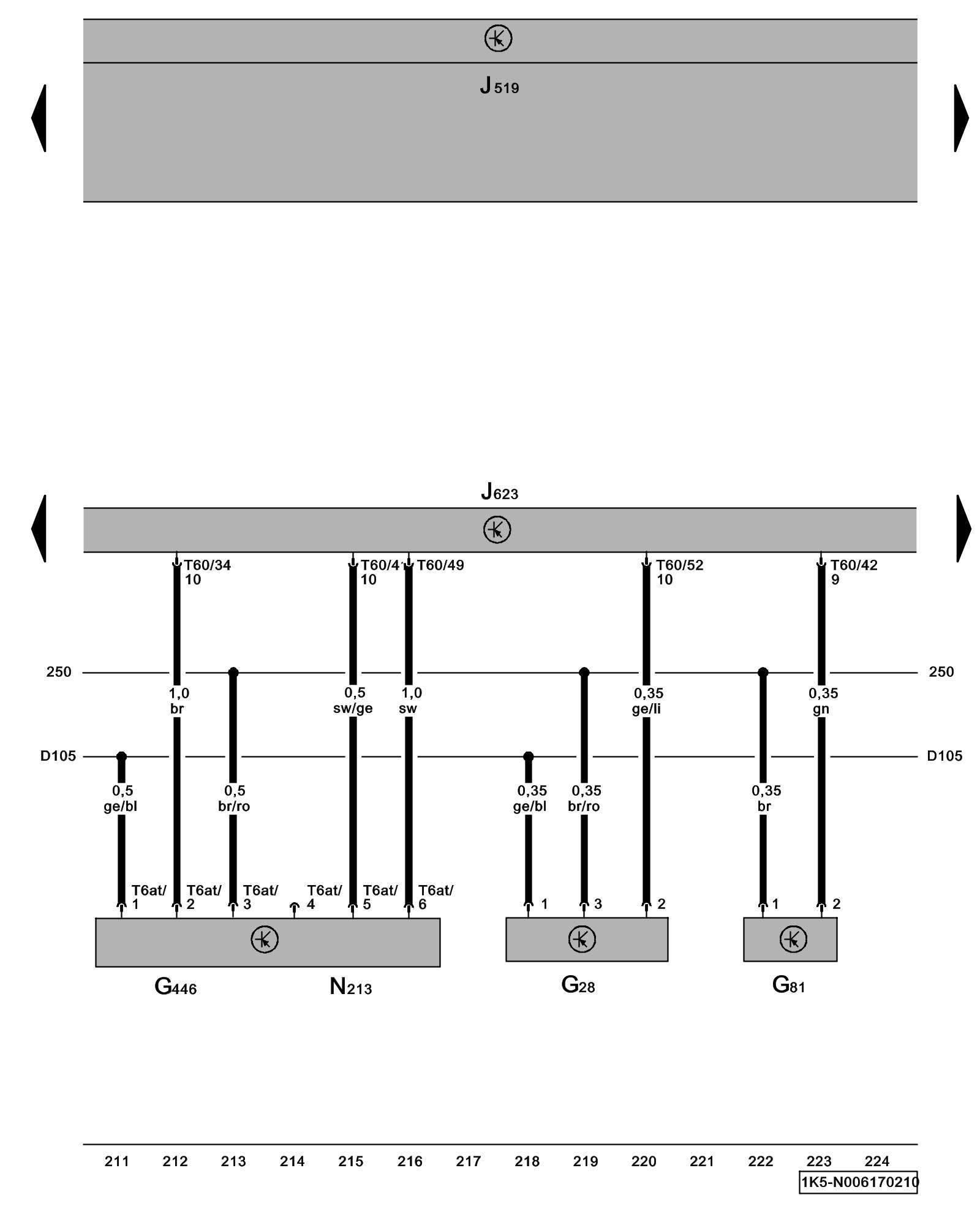

Engine Speed (RPM) Sensor, Fuel Temperature Sensor, Fuel Quality Sensor, Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine Speed (RPM) Sensor Locations

G81 - Fuel Temperature Sensor Locations [1][2]Diagrams

G446 - Fuel Quality Sensor [1][2]Diagrams

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

N213 - EGR Valve 2 Locations [1][2]Diagrams

T6at - 6-Pin Connector

T60 - 60-Pin Connector

Previous Diagram 6/16 (Tracks 197-210)

Next Diagram 6/18 (Tracks 225-238)
