Diagram 6/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

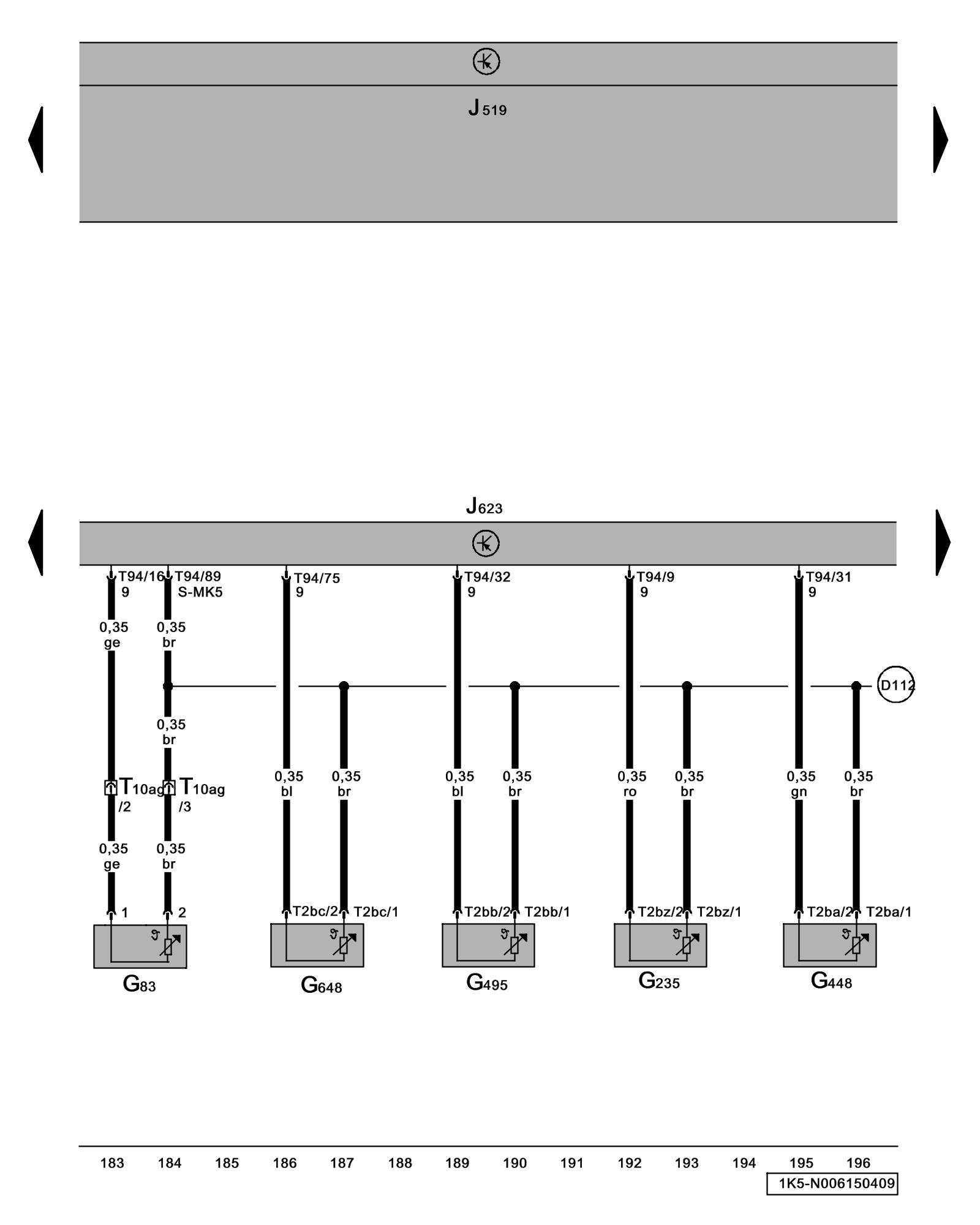

Engine Coolant Temperature (ECT) Sensor (on Radiator), Exhaust Gas Temperature (EGT) Sensor, Engine Control Module (ECM), Exhaust Gas Temperature (EGT) Sensor 1, 2, 3 and 4, Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G83 - Engine Coolant Temperature (ECT) Sensor (on Radiator) Locations Engine Coolant Temperature Sensor On Radiator -G83-

G235 - Exhaust Gas Temperature (EGT) Sensor 1 Locations Exhaust Gas Temperature Sensor 1 -G235-

G448 - Exhaust Gas Temperature (EGT) Sensor 2 Locations Exhaust Gas Temperature Sensor 2 -G448-

G495 - Exhaust Gas Temperature (EGT) Sensor 3 Locations Exhaust Gas Temperature Sensor 3 -G495-

G648 - Exhaust Gas Temperature (EGT) Sensor 4 Locations Exhaust Gas Temperature Sensor 4 -G648-

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

T2ba - Double Connector, orange, on bulkhead

T2bb - Double Connector, black, on bulkhead

T2bc - Double Connector, yellow, on bulkhead

T2bz - Double Connector

T10ag - 10-Pin Connector

T94 - 94-Pin Connector

(D112) - Connection 10 (in engine compartment wiring harness)

Previous Diagram 6/14 (Tracks 169-182)

Next Diagram 6/16 (Tracks 197-210)
