Diagram 6/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

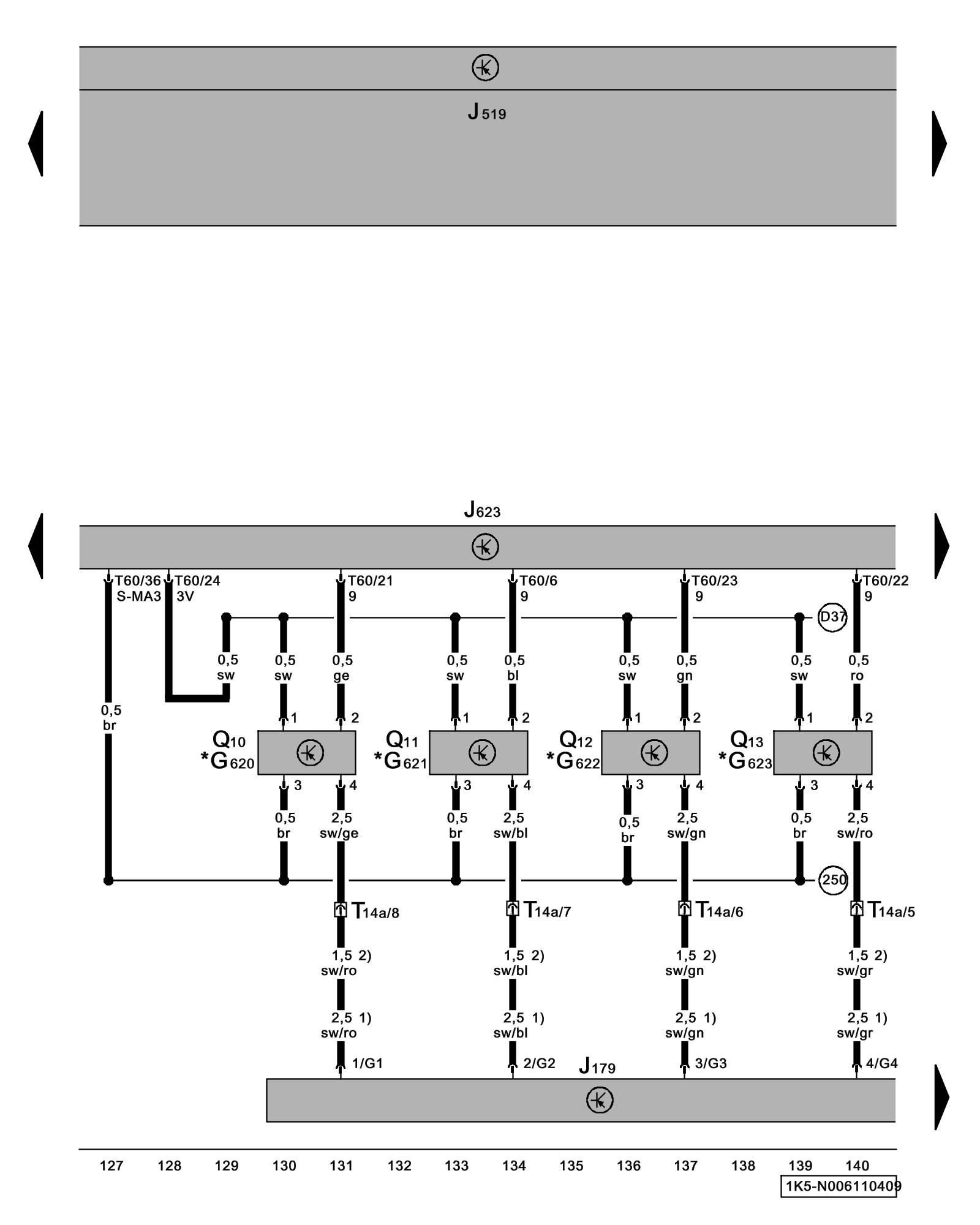

Cylinder 1, 2, 3 and 4 Internal Pressure Sensor, Automatic Glow Time Control Module, Engine Control Module (ECM), Glow Plugs 1, 2, 3 and 4





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G620 - Cylinder 1 Internal Pressure Sensor

G621 - Cylinder 2 Internal Pressure Sensor

G622 - Cylinder 3 Internal Pressure Sensor

G623 - Cylinder 4 Internal Pressure Sensor

J179 - Automatic Glow Time Control Module Locations [1][2]Diagrams

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

Q10 - Glow Plug 1

Q11 - Glow Plug 2

Q12 - Glow Plug -3

Q13 - Glow Plug 4

T14a - 14-Pin Connector

T60 - 60-Pin Connector

(250) - Ground Connection (in Diesel engine pre-wiring wiring harness)

(D37) - Glow Plugs Connection (in engine pre-wiring wiring harness)

* - in the Glow Plug

1) - Through December 2008

2) - From December 2008

Previous Diagram 6/10 (Tracks 113-126)

Next Diagram 6/12 (Tracks 141-154)
