Diagram 6/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Heated Oxygen Sensor (HO2S), Vehicle Electrical System Control Module, Engine Control Module (ECM), Fuel Pressure Regulator Valve, Fuel Metering Valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

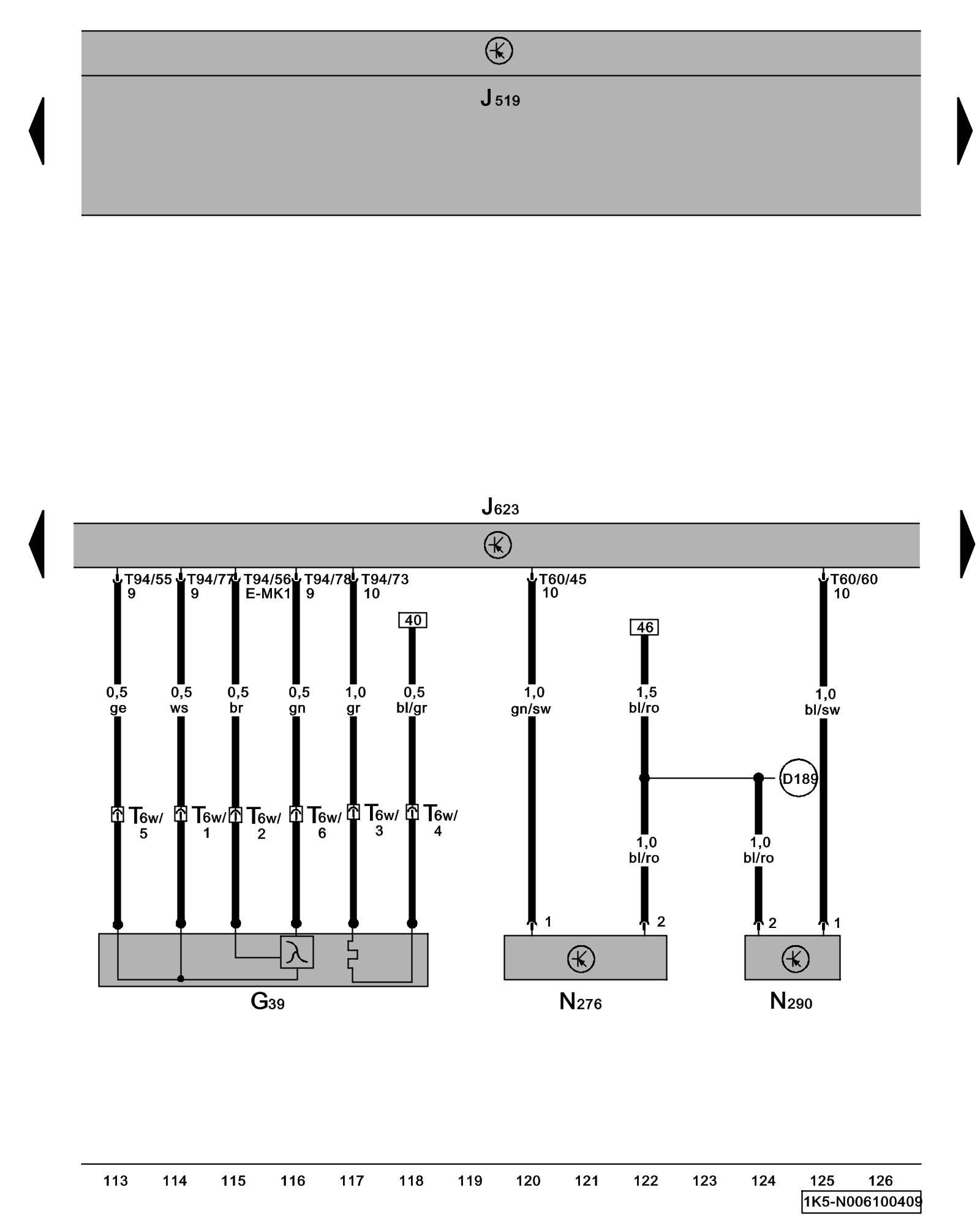

G39 - Heated Oxygen Sensor (HO2S) Locations Heated Oxygen Sensor -G39-

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

N276 - Fuel Pressure Regulator Valve Locations [1][2]Diagrams

N290 - Fuel Metering Valve Locations Fuel Metering Valve -N290-

T6w - 6-Pin Connector

T60 - 60-Pin Connector

T94 - 94-Pin Connector

(D189) - Connection (87a) (in engine pre-wiring wiring harness)

Previous Diagram 6/9 (Tracks 99-112)

Next Diagram 6/11 (Tracks 127-140)
