Diagram 69/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


CAN-Bus connections, Control Modules





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J136 - Memory Seat/Steering Column Adjustment Control Module

J255 - Climatronic Control Module Passenger Compartment Climatronic (Automatic Climate Control) System

J301 - A/C Control Module Passenger Compartment A/C And Heating System

J386 - Driver Door Control Module Control Modules In Interior, From July 2007

J387 - Front Passenger Door Control Module Control Modules In Interior, From July 2007

J393 - Comfort System Central Control Module Control Modules In Interior, From July 2007

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J527 - Steering Column Electronic Systems Control Module Control Modules In Interior, From July 2007

T4at - 4-Pin Connector

T10a - 10-Pin Connector

T18 - 18-Pin Connector

T20a - 20-Pin Connector

T20b - 20-Pin Connector

T20c - 20-Pin Connector

T20d - 20-Pin Connector

T28 - 28-Pin Connector

T28a - 28-Pin Connector

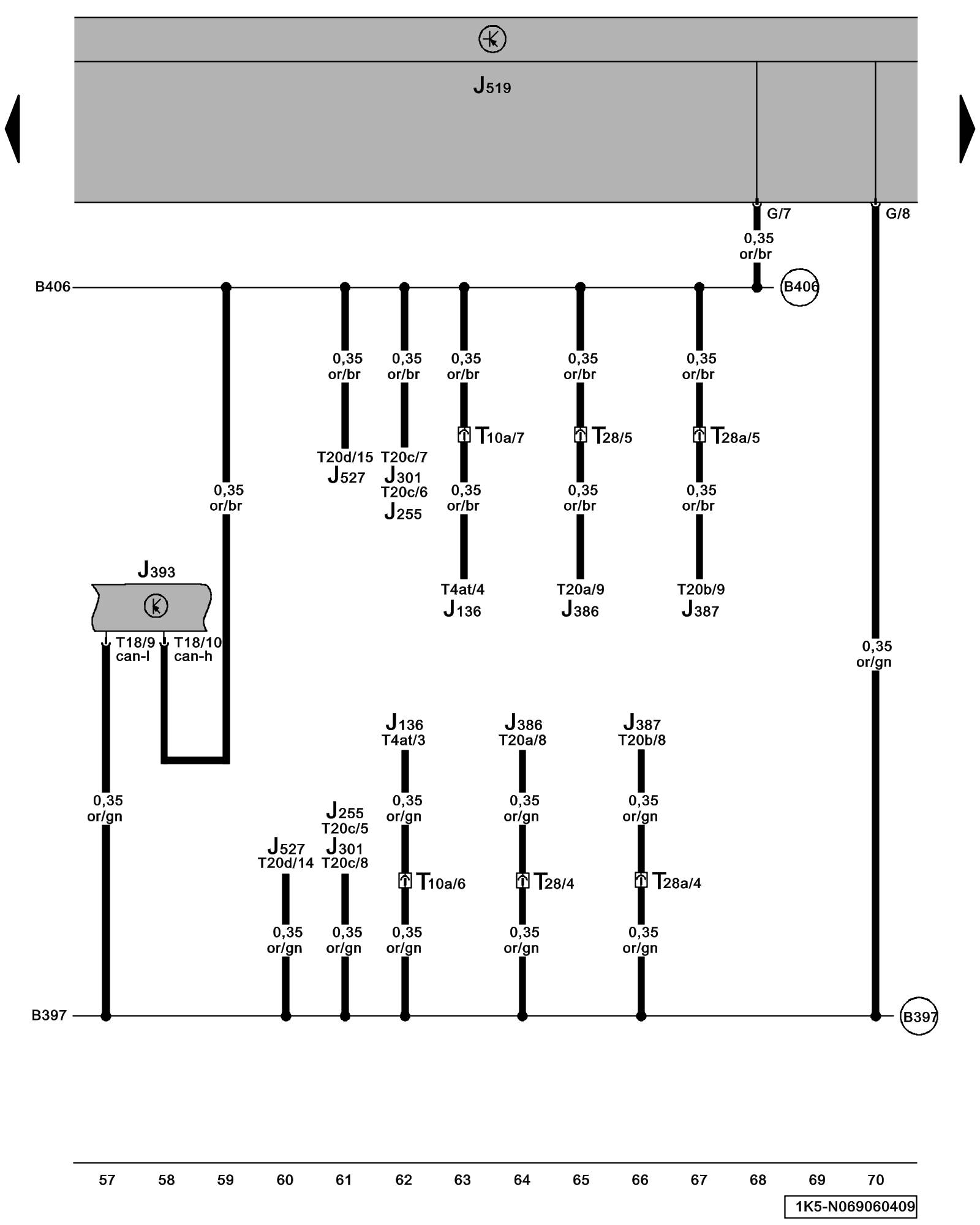

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)
