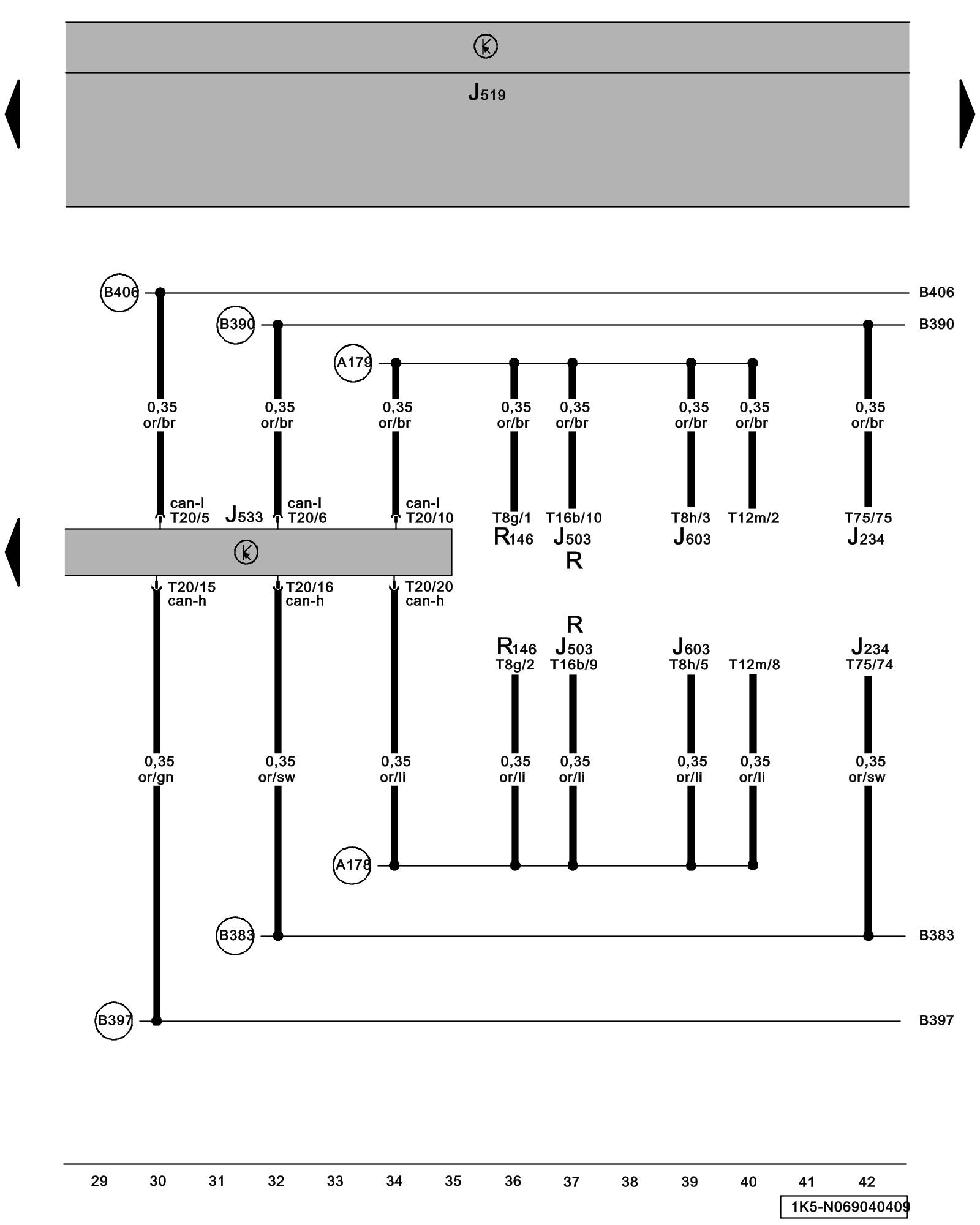

Diagram 69/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Data Bus On Board Diagnostic Interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag Control Module Control Modules In Interior, From July 2007

J503 - Radio/Navigation Display Unit Control Module RNS 510 Radio/Nav System Overview

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J533 - Data Bus On Board Diagnostic Interface Control Modules In Interior, From July 2007

J603 - Vehicle Position Recognition Control Module

R - Radio

R146 - Satellite Radio Control Module In Luggage Compartment

T8g - 8-Pin Connector

T8h - 8-Pin Connector

T12m - 12-Pin Connector

T16b - 16- Pin Connector

T20 - 20-Pin Connector

T75 - 75-Pin Connector

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Lo-bus Connection (in instrument panel wiring harness)

(B383) - Powertrain CAN-Bus High Connection 1 (in main wiring harness)

(B390) - Powertrain CAN-Bus Low Connection 1 (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

Previous Diagram 69/3 (Tracks 15-28)

Next Diagram 69/5 (Tracks 43-56)
