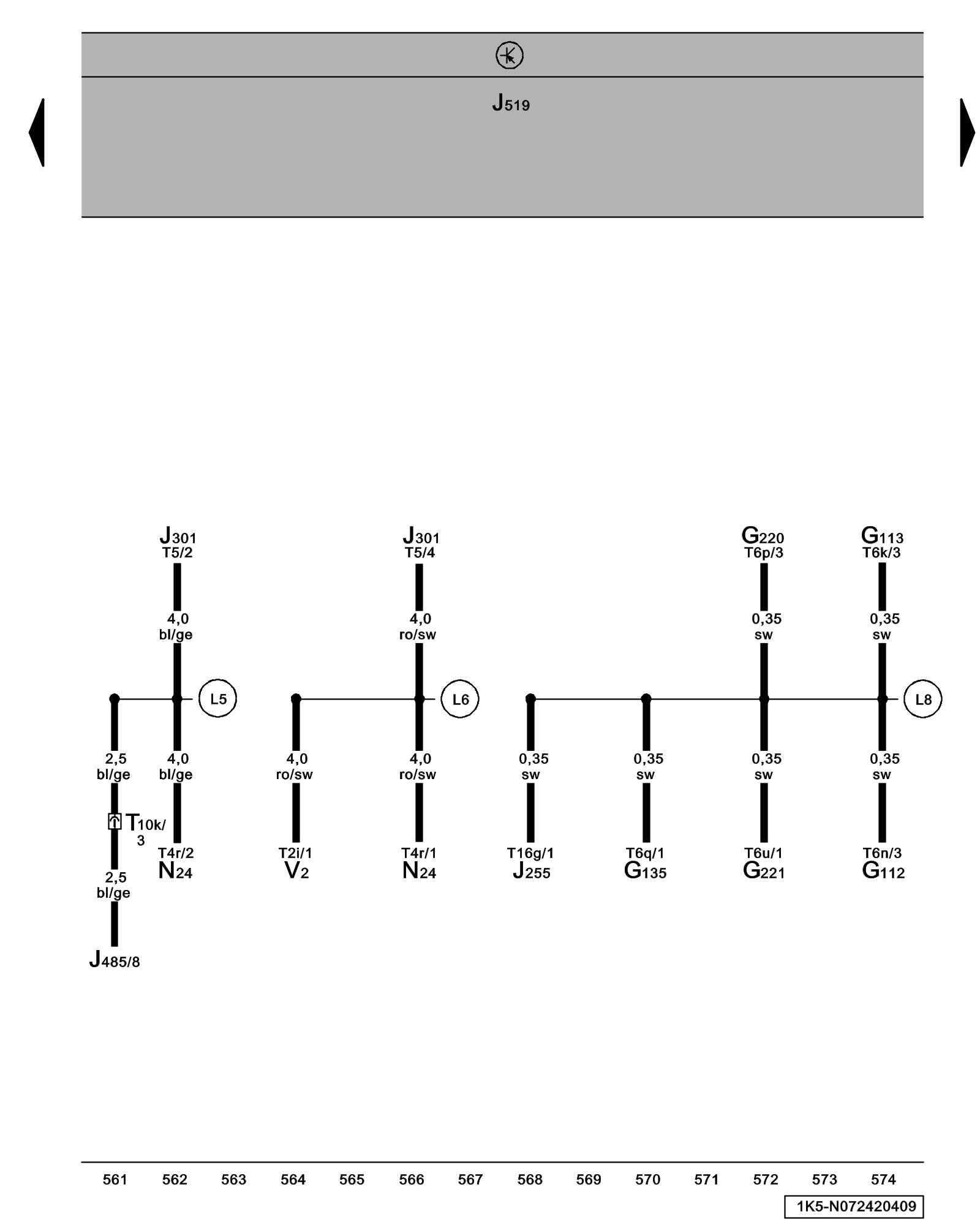

Diagram 72/42 (Tracks 561-574)
IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions
Power and signal splices
ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink
G112 - Central Flap Motor Position Sensor Passenger Compartment Climatronic (Automatic Climate Control) System
G113 - Back Pressure Flap Motor Position Sensor Passenger Compartment Climatronic (Automatic Climate Control) System
G135 - Defroster Flap Motor Position Sensor Passenger Compartment Climatronic (Automatic Climate Control) System
G220 - Left Temperature Flap Potentiometer/Actuator Passenger Compartment Climatronic (Automatic Climate Control) System
G221 - Right Temperature Flap Potentiometer/Actuator Passenger Compartment Climatronic (Automatic Climate Control) System
J255 - Climatronic Control Module Passenger Compartment Climatronic (Automatic Climate Control) System
J301 - A/C Control Module Passenger Compartment A/C And Heating System
J485 - Auxiliary Heater Operation Relay
J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007
N24 - Fresh Air Blower Series Resistor With Fuse Passenger Compartment A/C And Heating System
T2i - Double Connector
T4r - 4-Pin Connector
T5 - 5-Pin Connector
T6k - 6-Pin Connector
T6n - 6-Pin Connector
T6p - 6-Pin Connector
T6q - 6-Pin Connector
T6u - 6-Pin Connector
T10k - 10-Pin Connector
T16g - 16-Pin Connector
V2 - Fresh Air Blower Passenger Compartment A/C And Heating System
(L5) - Connection 1 (in evaporator housing wiring harness)
- Location: In evaporator housing wiring harness between wiring circuits for G263 - Evaporator Vent Temperature Sensor and V2 - Fresh Air Blower
- Note: from MY 2008 referenced page 43
(L6) - Connection 2 (in evaporator housing wiring harness)
- Location: In wiring circuit between evaporator housing wiring harness and V2 - Fresh Air Blower
(L8) - Connection 4 (in evaporator housing wiring harness)
- Location: In wiring circuit between evaporator housing wiring harness and J255 - Climatronic Control Module
Previous Diagram 72/41 (Tracks 547-560)
Next Diagram 72/43 (Tracks 575-588)
