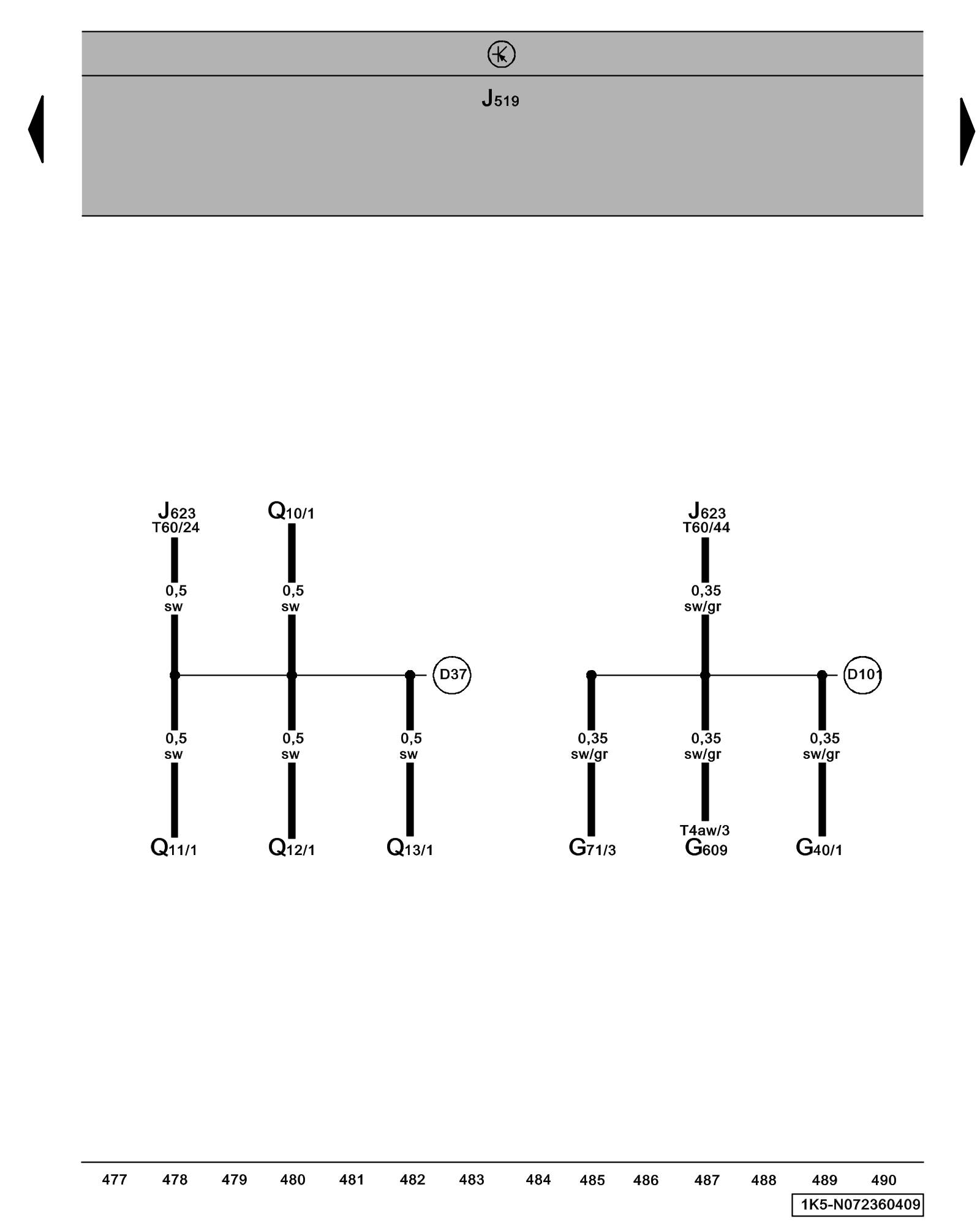

Diagram 72/36 (Tracks 477-490)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power and signal splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft Position (CMP) Sensor [1][2]Camshaft Position Sensor Locations

G71 - Manifold Absolute Pressure (MAP) Sensor

G609 - Secondary Air Injection Sensor 1 Locations

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

Q10 - Glow Plug 1

Q11 - Glow Plug 2

Q12 - Glow Plug 3

Q13 - Glow Plug 4

T4aw - 4-Pin Connector

T60 - 60-Pin Connector

(D37) - Glow Plugs Connection (in engine wiring harness)


- Location: In wiring circuit between main harness and J623 - Engine Control Module (ECM)

(D101) - Connection 1 (in engine compartment wiring harness)


- Location: in vehicle 2,5 L: In wiring circuit between main harness and J623 - Engine Control Module (ECM)

Previous Diagram 72/35 (Tracks 463-476)

Next Diagram 72/37 (Tracks 491-504)
