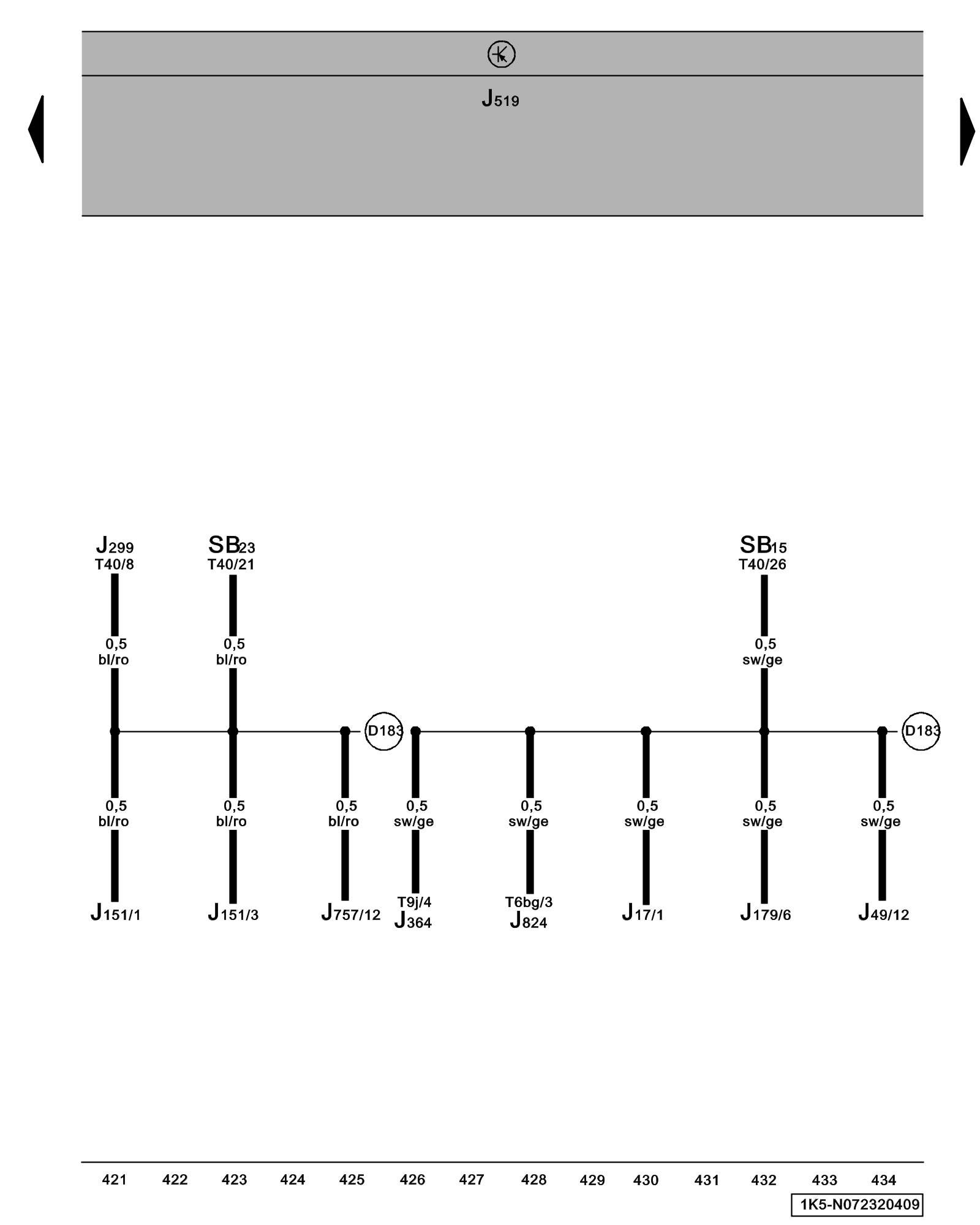

Diagram 72/32 (Tracks 421-434)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power and signal splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J17 - Fuel Pump (FP) Relay Overview Of Position Of Relays

J49 - Fuel Pump (FP) 2 Relay

J151 - Coolant Circulation Pump Relay

J179 - Automatic Glow Time Control Module [1][2]Diagrams Locations

J299 - Secondary Air Injection (AIR) Pump Relay

J364 - Auxiliary Heater Control Module

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J757 - Engine Component Power Supply Relay

J824 - Auxiliary Heater Control Module 2

SB15 - Fuse 15 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

SB23 - Fuse 23 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

T6bg - 6-Pin Connector

T9j - 9-Pin Connector

T40 - 40-Pin Connector

(D183) - Connection 4 (87a) (in engine wiring harness)


- Location: in vehicle 2,0 L Diesel: In main wiring harness between wiring circuits for E-Box and G476- Clutch Position Sensor


- Location: in vehicle 2,0 L: In main wiring harness between wiring circuits for E-Box and T14a connection in engine compartment wiring harness
