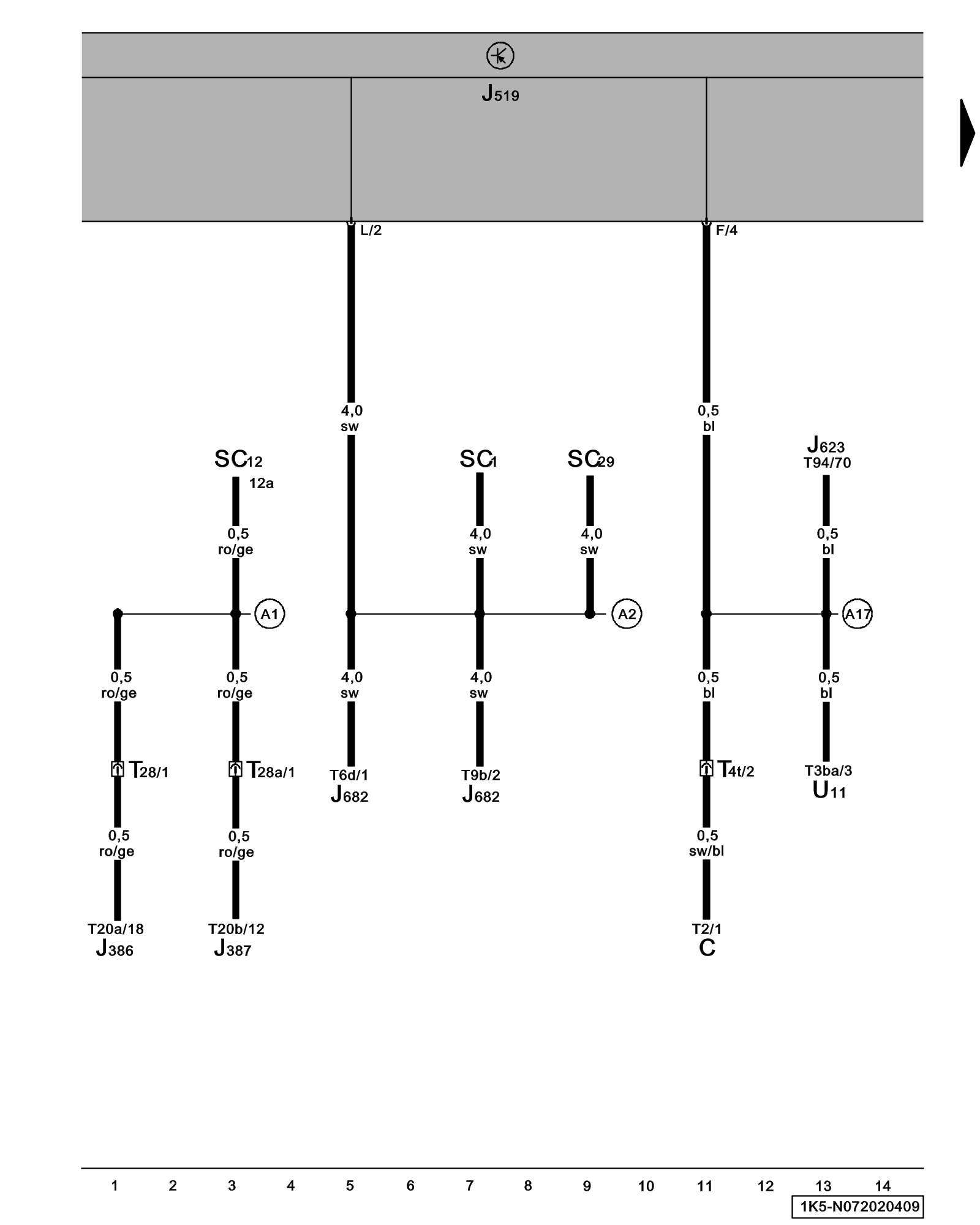

Diagram 72/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power and signal splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

C - Generator (GEN)

J386 - Driver Door Control Module Control Modules In Interior, From July 2007

J387 - Front Passenger Door Control Module Control Modules In Interior, From July 2007

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

J682 - Power Supply Relay (terminal 50) Overview Of Position Of Relays

SC1 - Fuse 1 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC12 - Fuse 12 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC29 - Fuse 29 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

T2 - Double Connector

T3ba - 3-Pin Connector

T4t - 4-Pin Connector

T6d - 6-Pin Connector

T9b - 9-Pin Connector

T20a - 20-Pin Connector

T20b - 20-Pin Connector

T28 - 28-Pin Connector

T28a - 28-Pin Connector

T94 - 94-Pin Connector

U11 - Interior Socket, 230V, 110V

(A1) - Plus Connection (30a) (in instrument panel wiring harness)

Location: - In wiring circuit between main wiring harness and power supply (SC)

(A2) - Plus Connection (15) (in instrument panel wiring harness)

Location: - In wiring circuit between main wiring harness and J682 - Power Supply Relay (terminal 50)

(A17) - Connection (61) (in instrument panel wiring harness)

Location: - In main wiring harness between wiring circuits for T16 - Data Link Connector (DLC) and G476 - Clutch Position Sensor, before nozzle

Next Diagram 72/3 (Tracks 15-28)
