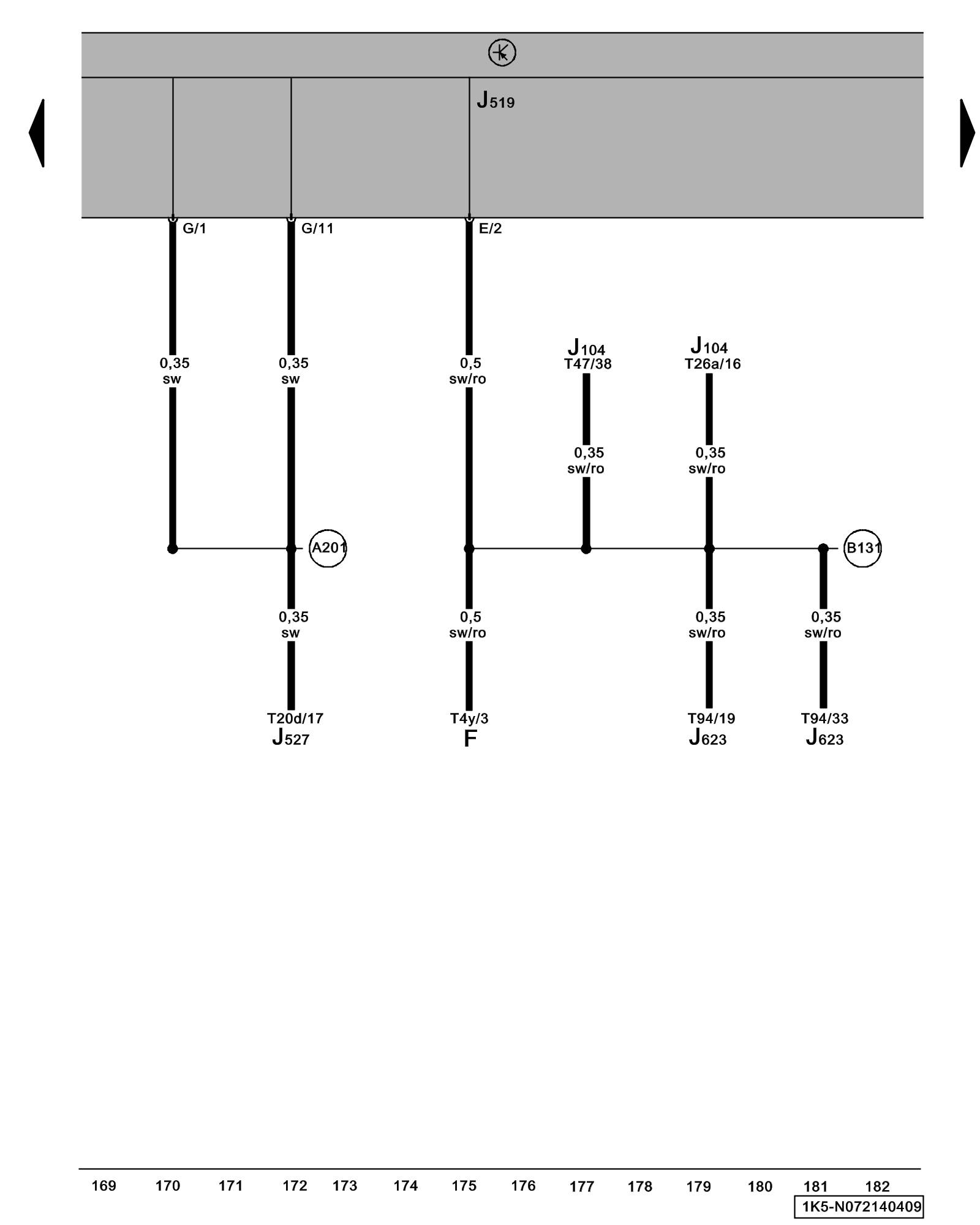

Diagram 72/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power and signal splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch Locations

J104 - ABS Control Module Control Modules In Engine Compartment

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J527 - Steering Column Electronic Systems Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

T4y - 4-Pin Connector

T20d - 20-Pin Connector

T26a - 26-Pin Connector

T47 - 47-Pin Connector

T94 - 94-Pin Connector

(A201) - Plus Connection 6 (15a)(in instrument panel wiring harness)


- Location: In wiring circuit between main wiring harness and J519 - Vehicle Electrical System Control Module

(B131) - Connection (54) (in interior wiring harness)


- Location: In main wiring harness between wiring circuits for J285 - Instrument Cluster Control Module and J533 - Data Bus On Board Diagnostic Interface
